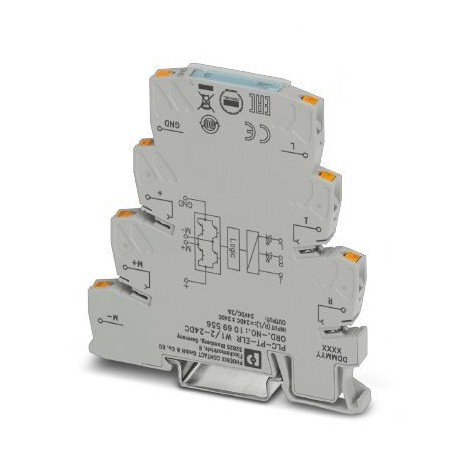

PLC-INTERFACE as an electronic reversing load relay, consisting of PLC-BPT…/21 basic terminal block with Push-in connection and integrated circuit, for driving DC motors, with LED display and protective circuit, output: 10 … 30 V DC/2 A
Liên hệ:
Key Commercial Data
| Orderkey | 1069556 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 423 (C-5-2019) |
| GTIN | 4055626744865 |
| Weight per Piece (excluding packing) | 40.000 g |
| Custom tariff number | 85371098 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Degree of protection | IP20 |
Input data
| Input name | Device supply |
|---|---|
| Nominal input voltage UN | 24 V DC ±20 % (Control voltage USTright/left) |
| Input voltage range | 19.2 V DC … 28.8 V DC |
| Typical input current at UN | approx. 3 mA (Control input current ISTright/left) |
| Rated control circuit supply voltage US | 24 V DC |
| Control supply voltage range | 19.2 V DC … 28.8 V DC |
| Transmission frequency | 300 Hz |
| Protective circuit | Reverse polarity protection Polarity protection diode |
| Surge protection | |
| Surge voltage protection | > 33 V DC |
| Typical response time | 200 µs |
| Status display | Yellow LED |
| Switchover time RL/LL(turn-on time) | 80 ms |
| Input name | Control input right/left |
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.8 … 1.2 |
| Input voltage range | 19.2 V DC … 28.8 V DC |
Output data load output
| Output name | DC output |
|---|---|
| Note | Protect the supply voltage at the output using a suitable fuse. |
| Nominal output voltage | 24 V DC |
| Operating voltage range | 10 V DC … 30 V DC |
| Nominal output voltage range | 10 V DC … 30 V DC |
| Type of protection | Reverse polarity protection |
| Protective circuit/component | Polarity protection diode |
| Note on protection circuit | No continuous protection against polarity reversal |
| Type of protection | Surge protection |
General
| Mounting position | Vertical (horizontal DIN rail) |
|---|---|
| Assembly instructions | In rows with zero spacing |
| Operating mode | 100% operating factor |
Connection data
| Connection name | Control circuits |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² … 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² … 2.5 mm² |
| Conductor cross section AWG | 26 … 14 |
Connection data 2
| Connection name | Load circuit |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² … 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² … 2.5 mm² |
| Conductor cross section AWG | 26 … 14 |
Standards and Regulations
| Designation | Air clearances and creepage distances between the power circuits |
|---|---|
| Standards/regulations | IEC 60664 |
| EN 50178 | |
| Rated insulation voltage | 50 V |
| Rated surge voltage | 0.5 kV |
| Insulation | Basic insulation |
| Pollution degree | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 6.0 | 27371000 |
|---|---|
| [email protected] 7.0 | 27371014 |
| [email protected] 8.0 | 27371014 |
| [email protected] 9.0 | 27371014 |
