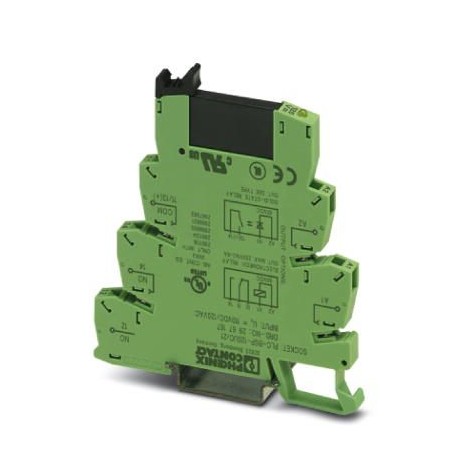

Key Commercial Data
| Orderkey | 2967552 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 324 (C-7-2013) |
| GTIN | 4017918165796 |
| Weight per Piece (excluding packing) | 28.360 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C … 70 °C |
Input data
| Nominal input voltage UN | 120 V AC |
|---|---|
| 110 V DC | |
| Input voltage range in reference to UN | 0.9 … 1.1 |
| Input voltage range | 108 V AC … 132 V AC |
| 99 V DC … 121 V DC | |
| Switching threshold “0” signal in reference to UN | ≤ 0.3 |
| Switching threshold “1” signal in reference to UN | ≥ 0.9 |
| Typical input current at UN | 3.5 mA |
| Typical response time | 3 ms (at UN) |
| Typical turn-off time | 4 ms (at UN) |
| Type of protection | Bridge rectifier |
| Protective circuit/component | Bridge rectifier |
| Transmission frequency | 10 Hz |
| Power dissipation for nominal condition | 0.42 W |
Output data
| Output voltage range | 3 V DC … 48 V DC |
|---|---|
| Limiting continuous current | 100 mA |
| Voltage drop at max. limiting continuous current | ≤ 1 V |
| Output circuit | 2-wire, floating |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
