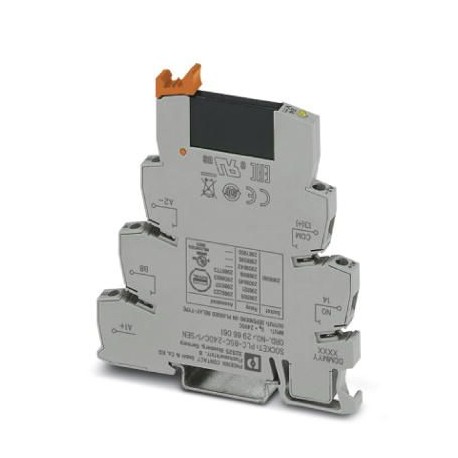

Key Commercial Data
| Orderkey | 2967840 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 377 (C-5-2017) |
| GTIN | 4017918190644 |
| Weight per Piece (excluding packing) | 35.500 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C … 70 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 … 1.2 |
| Input voltage range | 19.2 V DC … 28.8 V DC |
| Switching threshold “0” signal in reference to UN | ≤ 0.25 |
| Switching threshold “1” signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 8 mA |
| Typical response time | 10 ms (at UN) |
| Typical turn-off time | 10 ms (at UN) |
| Operating voltage display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Free-wheeling diode | |
| Protective circuit/component | Polarity protection diode |
| Damping diode | |
| Transmission frequency | 10 Hz |
| Power dissipation for nominal condition | 0.19 W |
Output data
| Output voltage range | 24 V AC … 253 V AC |
|---|---|
| Limiting continuous current | 0.75 A (see derating curve) |
| Maximum inrush current | 30 A (10 ms) |
| Min. load current | 10 mA |
| Leakage current | < 1 mA (in off state) |
| Max. load value | 4.5 A2s |
| Voltage drop at max. limiting continuous current | < 1 V |
| Output circuit | 2-wire, floating |
| Type of protection | RCV circuit |
