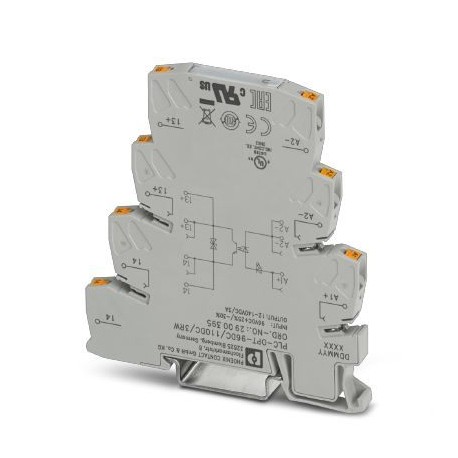

Key Commercial Data
| Orderkey | 2900395 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 415 (C-5-2017) |
| GTIN | 4046356506946 |
| Weight per Piece (excluding packing) | 36.000 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C … 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Degree of protection | IP20 |
Input data
| Nominal input voltage UN | 96 V DC |
|---|---|
| Input voltage range in reference to UN | 0.7 … 1.25 (t < 1 s = 0.6 … 1.4 x UN) |
| Input voltage range | 67.2 V DC … 120 V DC |
| Switching threshold “0” signal in reference to UN | < 0.3 |
| Switching threshold “1” signal in reference to UN | > 0.6 |
| Typical input current at UN | 5.5 mA |
| Typical response time | 40 µs |
| Typical turn-off time | 200 µs |
| Operating voltage display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Series polarity protection diode |
| Surge voltage protection | > 150 V |
| Transmission frequency | 300 Hz |
| Power dissipation for nominal condition | 0.53 W |
Output data
| Output nominal voltage | 110 V DC |
|---|---|
| Output voltage range | 12 V DC … 140 V DC (t < 1 s = 1.40 x UN) |
| Limiting continuous current | 3 A (see derating curve) |
| Surge voltage protection | > 150 V |
| Voltage drop at max. limiting continuous current | < 150 mV |
| Output circuit | 2-wire, floating |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Parallel polarity protection diode |
