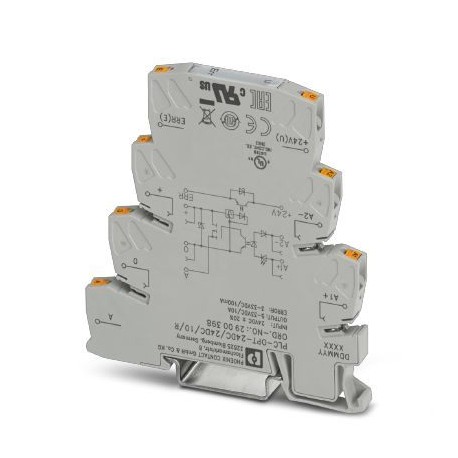

Key Commercial Data
| Orderkey | 2900398 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 407 (C-5-2017) |
| GTIN | 4046356506960 |
| Weight per Piece (excluding packing) | 34.640 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Degree of protection | IP20 |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 … 1.2 |
| Input voltage range | 19.2 V DC … 28.8 V DC |
| Switching threshold “0” signal in reference to UN | ≤ 0.4 |
| Switching threshold “1” signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 3 mA |
| Typical response time | 0.15 ms |
| Typical turn-off time | 1 ms |
| Operating voltage display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
| Transmission frequency | 100 Hz |
| Power dissipation for nominal condition | 0.07 W |
Output data
| Designation | DC voltage output |
|---|---|
| Output voltage range | 5 V DC … 33 V DC |
| Limiting continuous current | 10 A (see derating curve) |
| Maximum inrush current | 100 A (t = 20 ms) |
| Voltage drop at max. limiting continuous current | ≤ 50 mV |
| Output circuit | 3-conductor, ground-referenced |
| Type of protection | Protection against polarity reversal (not continuous protection) |
| Surge protection | |
| Designation | Alarm output |
| Limiting continuous current | 100 mA |
| Voltage drop at max. limiting continuous current | < 1.2 V |
| Indication | Red LED |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
| Suppressor diode |
