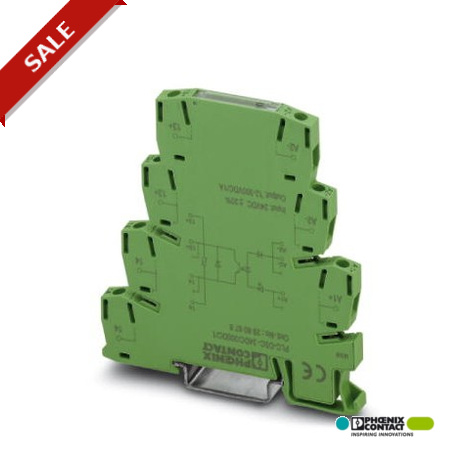

PLC-OPT-110DC/300DC/1 2900385 PHOENIX CONTACT PLC-INTERFACE, integrated solid-state relay, with Push-in conn..
PLC-OPT-110DC/300DC/1 2900385 PHOENIX CONTACT PLC-INTERFACE, integrated solid-state relay, with Push-in conn..
PLC-INTERFACE, integrated solid-state relay, with Push-in connection, for mounting on NS 35/7,5 DIN rails, input: 110 V DC, output: 12 – 300 V DC/1 A
Liên hệ:
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Dimensions
| Width | 6.2 mm |
|---|---|
| Height | 80 mm |
| Depth | 86 mm |
Output data
| Designation | Output data |
|---|---|
| Output voltage range | 12 V DC … 300 V DC (Partition plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal points in adjacent modules. Potential bridging is then carried out with FBST 8-PLC… or …FBST 500…) |
| Limiting continuous current | 1 A (see derating curve) |
| Voltage drop at max. limiting continuous current | < 500 mV |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
| Varistor |
