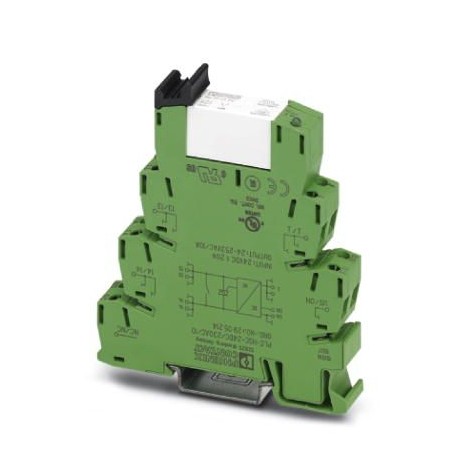

Key Commercial Data
| Orderkey | 2905214 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 409 (C-5-2017) |
| GTIN | 4046356927567 |
| Weight per Piece (excluding packing) | 63.060 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Degree of protection | IP20 |
Input data
| Rated control circuit supply voltage US | 24 V DC |
|---|---|
| Input voltage range | 19.2 V DC … 28.8 V DC |
| Rated control supply current IS | 14 mA (Input low, output low) |
| 19 mA (Input high, output high) | |
| Rated actuating voltage UC | 24 V DC |
| “0” signal switching threshold in reference to UC | < 0.4 |
| “1” signal switching threshold in reference to UC | > 0.8 |
| Typical response time | 30 ms |
| Typical turn-off time | 20 ms |
| Status display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Surge voltage protection | > 33 V DC |
| Transmission frequency | 1 Hz |
| Power dissipation for nominal condition | 0.16 W |
Output data
| Designation | AC hybrid output |
|---|---|
| Output voltage range | 24 V AC … 253 V AC (50/60 Hz) |
| Limiting continuous current | 10 A (see derating curve) |
| Min. load current | 100 mA |
| Leakage current | < 1 mA |
| Surge current | 250 A (tp = 20 ms, at 25°C) |
| Max. load value | 350 A2s (tp = 10 ms, at 25 °C) |
| Surge voltage protection | > 275 V |
| Output circuit | 2-wire, floating |
| Type of protection | RCV circuit |
