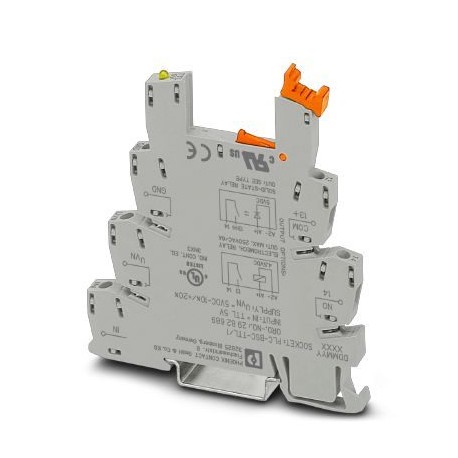

Key Commercial Data
| Orderkey | 2982689 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 412 (C-5-2017) |
| GTIN | 4046356155212 |
| Weight per Piece (excluding packing) | 30.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
Input data
| Rated control circuit supply voltage US | 5 V DC |
|---|---|
| Voltage range with reference to US | 0.9 … 1.2 |
| Rated control supply current IS | 41 mA |
| Rated actuating voltage UC | 5 V DC (TTL) |
| Voltage range with reference to UC | 0.9 … 1.2 |
| Rated actuating current IC | 2.5 mA |
| Rated actuating voltage UC | 5 V DC (TTL) |
| Rated actuating current IC | 2.5 mA |
| Rated control circuit supply voltage US | 5 V DC |
| Voltage range with reference to US | 0.9 … 1.2 |
| Rated control supply current IS | 11.5 mA |
| Switching level 1 signal (“H”) (TTL signal) | > 2 V DC |
| Switching level 0 signal (“L”) (TTL signal) | < 0.8 V DC |
| Nominal input voltage UN | 5 V DC (TTL) |
| Surge voltage protection | > 6.5 V |
| Transmission frequency | 1000 Hz |
| Surge voltage protection | > 6.5 V |
Connection data 1
| Connection name | Input side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.14 mm² … 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² … 2.5 mm² |
| 0.2 mm² … 2.5 mm² () | |
| 2x 0.5 mm² … 1.5 mm² () | |
| Conductor cross section AWG | 26 … 14 |
