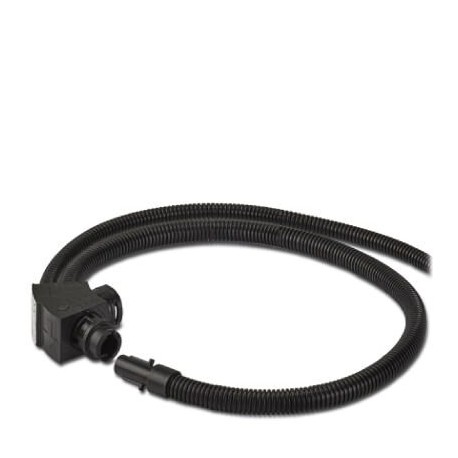

Coil Rogowski resistant to UV rays, length of coil Rogowski: 600 mm, diameter 190 mm, length of the signal cable: 3000 mm coil Rogowski measures the AC current of lanes and high-voltage lines.
Liên hệ:
Coil of Rogowski, UV-resistant-line of the coil of Rogowski : 600 mm, dimensions: 190 mm, signal line : 3000 mm. The coil Rogowski measuring the AC current of the beam and high voltage lines.
Trade data
| Order Code | One million thirty three thousand four hundred eighty four |
|---|---|
| Packaging unit | 1 pcs |
| Note | Manufacturing to the order (no recovery) |
| GTIN | Four trillion fifty five billion six hundred twenty six million five hundred thirty eight thousand nine hundred fifty two |
| Weight per piece (excluding packing) | 0,237 KGM |
| Number of the customs tariff | Ninety million three hundred nine thousand |
| Country of origin | IT (Italy) |
Ambient Conditions
| Ambient temperature (operation) | -30 °C … 80 °C (Coil of measure) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C (Coil of measure) |
| Height max. | < 2000 m |
| Humidity of the air eligible (service) | 5 % … 95 % (no condensation) |
| Protection Type coil meter | IP67 (not evaluated by UL) |
Data input coil measurement
| Measurement range of the frequency | 40 Hz … 20000 Hz |
|---|---|
| Position error | < 1 % |
| Default linearity | 0,1 % |
The output signal of the coil measuring
| The output Signal (at 50 Hz) | 100 mV (no load, with up to 1000 V) |
|---|---|
| Output voltage (empty) | VOUT= M * dI/dt |
| Output voltage (sinusoidal, vacuum) | 100 mV (VOUT= 2 * π * M * f * I (M = 0,318 µH ; example : 50 Hz ; I = 1000)) |
General characteristics of the coil measuring
| Length of the coil measuring | 600 mm |
|---|---|
| Coil diameter measurement | 8.3 mm ±0.2 mm |
| Length of the signaling line | 3000 mm |
| Structure of the driver signal line | 2x 0.22 mm (Signal (tinned)) |
| 1x 0.22 mm (Shielding (tin plated)) | |
| Material of coil | Elastollan |
| Housing material | PC |
| Insulation | double insulation |
| Rated insulation voltage | 1000 V AC (rms CAT III) |
| 600 V AC (rms CAT IV) | |
| Test voltage | To 10.45 kV (DC / 1 min) |
| Basic accuracy | |
| UL, USA/Canada | UL 61010 Recognized |
General characteristics
| Standards/Requirements | IEC 61010-1 |
|---|---|
| IEC 61010-2-032 |
