PACT RCP-D140 2904891 PHOENIX CONTACT 450 mm long Rogowski coil. The measuring coil diameter when installed ..
PACT RCP-D140 2904891 PHOENIX CONTACT 450 mm long Rogowski coil. The measuring coil diameter when installed ..

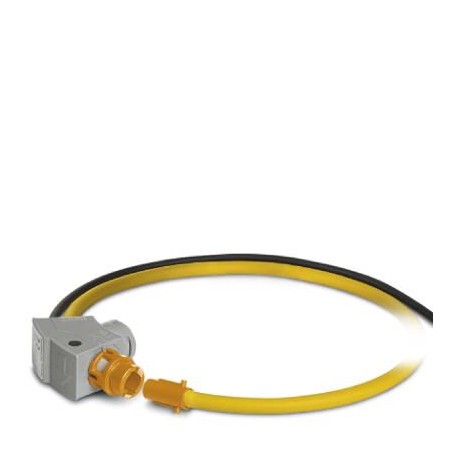

450 mm long Rogowski coil. The measuring coil diameter when installed is 140 mm. The Rogowski coil is used for AC current measurement for busbars and power lines.
Liên hệ:
Key Commercial Data
| Orderkey | 2904891 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 219 (C-5-2019) |
| GTIN | 4046356898188 |
| Weight per Piece (excluding packing) | 180.000 g |
| Custom tariff number | 90309000 |
| Country of origin | IT (Italy) |
Measuring coil input data
| Frequency measuring range | 40 Hz … 20000 Hz |
|---|---|
| Position error | < 1 % |
| Linearity error | 0.1 % |
Measuring coil signal output
| Output signal (at 50 Hz) | 100 mV (no load, at 1,000 A) |
|---|---|
| Output voltage (in no-load operation) | VOUT= M * dI/dt |
| Output voltage (sinusoidal, in no-load operation) | 100 mV (VOUT= 2 * π * M * f * I (M = 0.318 μH; example: At 50 Hz; I = 1,000 A)) |
General data, measuring coil
| Length of measuring coil | 450 mm |
|---|---|
| Diameter of measuring coil | 8.3 mm ±0.2 mm |
| Length of signal cable | 3000 mm |
| Conductor structure signal line | 2x 0.22 mm (Signal (tinned)) |
| 1x 0.22 mm (Shielding (tinned)) | |
| Coil material | Elastollan |
| Housing material | PC |
| Insulation | double insulation |
| Rated insulation voltage | 1000 V AC (rms CAT III) |
| 600 V AC (rms CAT IV) | |
| Test voltage | 10.45 kV (DC / 1 min.) |
| Basic accuracy | |
| UL, USA/Canada | UL 61010 Recognized |
Ambient conditions
| Ambient temperature (operation) | -30 °C … 80 °C (Measuring coil) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C (Measuring coil) |
| Maximum altitude | < 2000 m |
| Measuring coil degree of protection | IP67 (not assessed by UL) |
Standards and Regulations
| Standards/regulations | IEC 61010-1 |
|---|---|
| IEC 61010-2-032 | |
| UL, USA/Canada | UL 61010 Recognized |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 10.0.1 | 27219290 |
|---|---|
| [email protected] 4.0 | 27378000 |
| [email protected] 4.1 | 27378000 |
| [email protected] 5.0 | 27379100 |
| [email protected] 5.1 | 27379100 |
| [email protected] 6.0 | 27379200 |
| [email protected] 7.0 | 27379201 |
| [email protected] 8.0 | 27219290 |
| [email protected] 9.0 | 27219290 |
