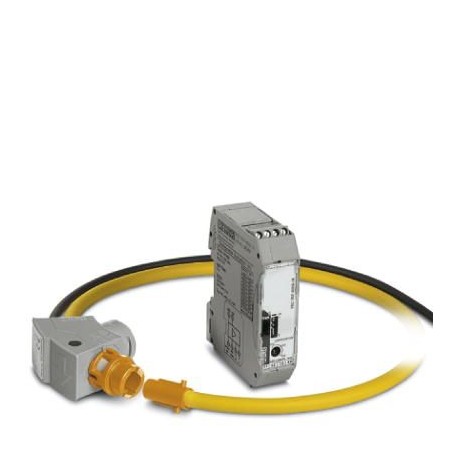

Key Commercial Data
| Orderkey | 1033483 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626539218 |
| Weight per Piece (excluding packing) | 440.300 g |
| Custom tariff number | 85437090 |
| Country of origin | DE (Germany) |
Measuring transducer supply
| Nominal supply voltage | 24 V DC -20 % … +25 % |
|---|---|
| Nominal supply voltage range | 19.2 V DC … 30 V DC |
| Max. current consumption | 190 mA |
| Power consumption | 4 W |
Measuring coil input data
| Frequency measuring range | 40 Hz … 20000 Hz |
|---|---|
| Position error | < 1 % |
| Linearity error | 0.1 % |
Measuring transducer input data
| Measuring ranges (current) | 100 A 250 A 400 A 630 A 1000 A 1500 A 2000 A 4000 A |
|---|---|
| Configurable/programmable | Via DIP switches |
| Phase angle | < 1 ° |
| Rated power | 1.5 VA |
| Max. distances for copper cables at PN max | 32 m (0.75 mm² (AWG 20)) |
| 64 m (1.5 mm² (AWG 16)) | |
| 107 m (2.5 mm² (AWG 14)) |
Measuring transducer signal input
| Input signal (at 50 Hz) | 100 mV (1000 A) |
|---|---|
| Input impedance | 27 kΩ (smallest measuring range) |
Measuring coil signal output
| Output signal (at 50 Hz) | 100 mV (no load, at 1,000 A) |
|---|---|
| Output voltage (in no-load operation) | VOUT= M * dI/dt |
| Output voltage (sinusoidal, in no-load operation) | 100 mV (VOUT= 2 * π * M * f * I (M = 0.318 μH; example: At 50 Hz; I = 1,000 A)) |
