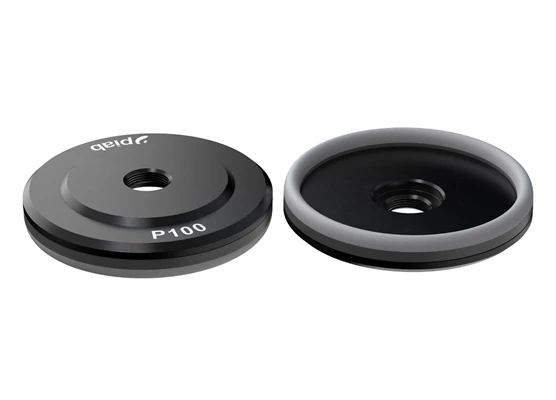

P100 - Suction cup - G1/2"

P100 – Suction cup – G1/2″

P100 – Suction cup – G1/2″

The P100 suction cups with G1/2″ female fitting are particularly suitable for handling strongly structured, uneven flat surfaces such as stone tiles, wood or checker plates. Made of aluminum with an EPDM rubber profile seal that can be easily replaced, when worn out, they enable the use of vacuum technology on surfaces for which it has so far not been considered.

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 02.23.820 Danh mục: Flat suction cups Thẻ: Item no: 02.23.820, P100 - Suction cup - G1/2"

Mô tả

The P100 suction cups with G1/2″ female fitting are particularly suitable for handling strongly structured, uneven flat surfaces such as stone tiles, wood or checker plates. Made of aluminum with an EPDM rubber profile seal that can be easily replaced, when worn out, they enable the use of vacuum technology on surfaces for which it has so far not been considered.

Suitable for handling of flat, structured and uneven surfaces like checker plates or stone tiles.

The profile list, manufactured in EPDM, is soft and can take up height differences of a few mm.

High lifting force compared to its size due to the rigid aluminum plate.

The cup is designed to handle vertical lift forces. Subjecting the cup of parallel lift forces is not recommended.

General

Suction cup shape

Flat

Application

MarkFree, PlasticInjectionMoldedParts, DrySheetMetal

Material

AL, EPDM

Weight

8.61 oz

Volume

3.36 in³

Name

P100

Movement, vertical max.

0.12 in

Fitting size

1/2″

Fitting style

Female

Fitting type

G-thread

Height (C)

0.79 in

Outer diameter (A)

4.23 in

Performance – lifting forces

P100

5.91 -inHg

17.72 -inHg

26.58 -inHg

40.47 lbf

101.16 lbf

148.37 lbf

Values specified in the data sheet are tested at:

Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
Relative humidity: 0-100%
Compressed air quality: DIN ISO 8573-1 class 4
