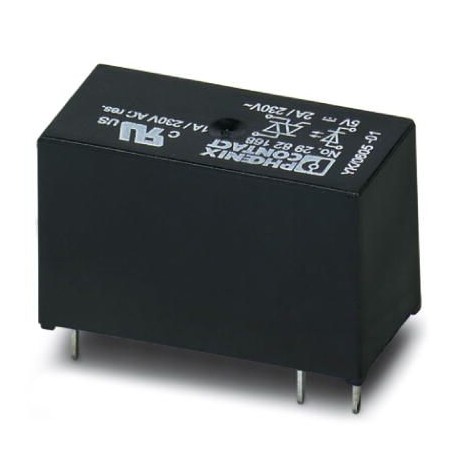

Key Commercial Data
| Orderkey | 2982168 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 311 (C-5-2017) |
| GTIN | 4017918996963 |
| Weight per Piece (excluding packing) | 10.930 g |
| Custom tariff number | 85364190 |
| Country of origin | HU (Hungary) |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C … 70 °C |
Input data
| Nominal input voltage UN | 5 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 … 1.2 |
| Input voltage range | 4 V DC … 6 V DC |
| Switching threshold “0” signal, voltage | < 1 V DC |
| Switching threshold “1” signal voltage | > 3 V DC |
| Typical input current at UN | 15 mA |
| Typical response time | 10 ms |
| Typical turn-off time | 10 ms |
| Type of protection | Reverse polarity protection |
| Protective circuit/component | Polarity protection diode |
| Transmission frequency | 10 Hz |
| Power dissipation for nominal condition | 0.08 W |
Output data
| Output nominal voltage | 230 V AC |
|---|---|
| Output voltage range | 24 V AC … 253 V AC |
| Limiting continuous current | 2 A (see derating curve) |
| Maximum inrush current | 30 A (10 ms) |
| Min. load current | 25 mA |
| Leakage current | < 1 mA |
| Surge current | 30 A (10 ms) |
| Max. load value | 4 A2s (tp = 10 ms, at 25 °C) |
| Voltage drop at max. limiting continuous current | ≤ 1 V |
| Output circuit | 2-conductor floating, zero voltage switch |
| Type of protection | Surge protection |
| Protective circuit/component | RC element |
General
| Test voltage input/output | 2.5 kV (50 Hz, 1 min.) |
|---|---|
| Mounting position | any |
| Assembly instructions | See derating curve |
| Operating mode | 100% operating factor |
| Degree of protection | RT III (wash-proof) |
| Flammability rating according to UL 94 | V0 |
| Designation | Standards/regulations |
| Standards/regulations | IEC 60664 |
| EN 50178 | |
| Degree of pollution | 2 |
| Overvoltage category | III |
