Key Commercial Data

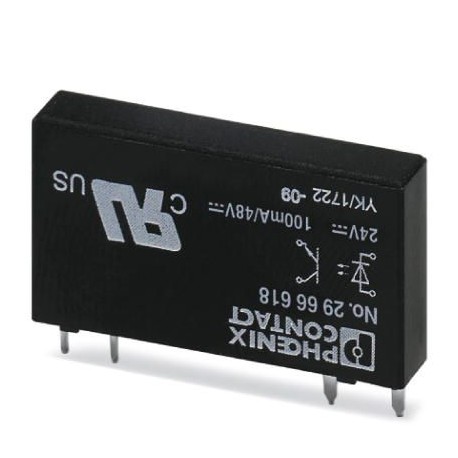

| Orderkey | 2966618 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 301 (C-5-2017) |
| GTIN | 4017918130466 |
| Weight per Piece (excluding packing) | 4.830 g |
| Custom tariff number | 85364190 |
| Country of origin | HU (Hungary) |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C … 70 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 … 1.2 |
| Input voltage range | 19.2 V DC … 28.8 V DC |
| Switching threshold “0” signal, voltage | ≤ 10 V |
| Switching threshold “1” signal voltage | ≥ 16 V |
| Typical input current at UN | 7 mA |
| Typical response time | 20 µs (at UN) |
| Typical turn-off time | 300 µs (at UN) |
| Transmission frequency | 300 Hz |
| Power dissipation for nominal condition | 0.17 W |
Output data
| Output voltage range | 3 V DC … 48 V DC |
|---|---|
| Limiting continuous current | 100 mA |
| Voltage drop at max. limiting continuous current | ≤ 1 V |
| Output circuit | 2-wire, floating |
| Type of protection | Reverse polarity protection |
| Surge protection |
General
| Test voltage input/output | 2.5 kV (50 Hz, 1 min.) |
|---|---|
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Operating mode | 100% operating factor |
| Degree of protection | RT III (wash-proof) |
| Designation | Standards/regulations |
| Standards/regulations | IEC 60664 |
| EN 50178 | |
| Degree of pollution | 2 |
| Overvoltage category | III |
