Key Commercial Data
| Orderkey | 2882226 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 74 (C-4-2017) |
| GTIN | 4046356073530 |
| Weight per Piece (excluding packing) | 102.150 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 (Child-proofing) |
|---|---|
| Ambient temperature (operation) | -25 °C … 75 °C |
| Ambient temperature (storage/transport) | -25 °C … 75 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Permissible humidity (operation) | 5 % … 95 % |
General
| EN type | T3 |
|---|---|
| Number of ports | One |
| Mode of protection | L-N |
| L-PE | |
| N-PE | |
| Mounting type | Plugging into the mains socket |
| Color | jet black RAL 9005 |
| Housing material | PA 6 |
| Degree of pollution | 2 |
| Flammability rating according to UL 94 | V-0 |

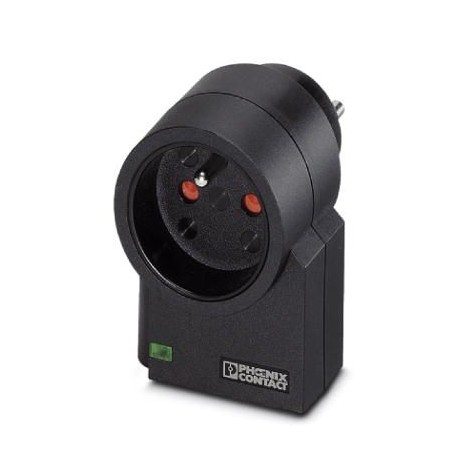

| Type | Attachment plug |
| Surge protection fault message | optical |
| For country-specific use in | B, F, CZ, SVK, PL |
Protective circuit
| Nominal voltage UN | 230/400 V AC (TN) |
|---|---|
| 230/400 V AC (TT – only in use with RCD) | |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous operating voltage UC(L-N) | 275 V AC |
| Maximum continuous operating voltage UC(L-PE) | 360 V AC |
| Maximum continuous operating voltage UC(N-PE) | 360 V AC |
| Rated load current IL | 16 A (30 °C) |
| Residual current IPE | ≤ 5 µA |
| Nominal discharge current In(8/20) µs | 3 kA (> 5x) |
| Standby power consumption PC | ≤ 1 VA |
| Reference test voltage UREF | 255 V AC |
| Combination wave UOC | 4 kV |
| Voltage protection level Up(L-N) | ≤ 1.2 kV |
| Voltage protection level Up(L-PE) | ≤ 1.5 kV |
| Voltage protection level Up(N-PE) | ≤ 1.5 kV |
| TOV behavior at UT(L-N) | 335 V AC (5 s / withstand mode) |
| 440 V AC (120 min / safe failure mode) | |
| TOV behavior at UT(L-PE) | 440 V AC (5 s / withstand mode) |
| 440 V AC (120 min / withstand mode) | |
| 1455 V AC (200 ms / safe failure mode) | |
| TOV behavior at UT(N-PE) | 1200 V AC (200 ms / safe failure mode) |
| Response time tA(L-N) | ≤ 25 ns |
| Response time tA(L-PE) | ≤ 100 ns |
| Response time tA(N-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (gG / B / C) |
| Short-circuit current rating ISCCR | 1.5 kA AC |
| Max. backup fuse with branch wiring | 16 A (gG / B / C) |
