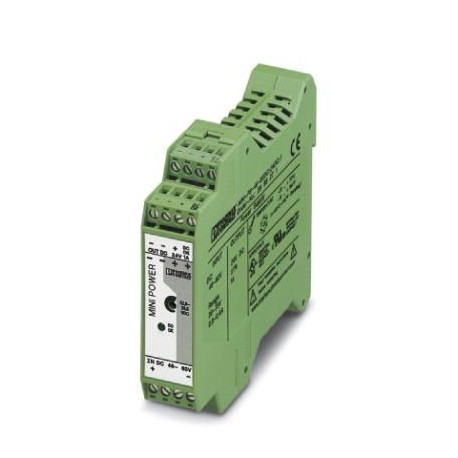

Key Commercial Data
| Orderkey | 2866271 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 257 (C-4-2017) |
| GTIN | 4017918960919 |
| Weight per Piece (excluding packing) | 200.000 g |
| Custom tariff number | 85044030 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C … 70 °C (> 60 °C Derating: 2.5 %/K) |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Input data
| Nominal input voltage range | 48 V DC … 60 V DC |
|---|---|
| Input voltage range | 36 V DC … 75 V DC |
| Frequency range DC | 0 Hz |
| Current consumption | 0.6 A (48 V DC) |
| 0.5 A (60 V DC) | |
| Inrush surge current | < 15 A (typical) |
| Mains buffering | typ. 15 ms (48 V DC) |
| typ. 20 ms (60 V DC) | |
| Input fuse | 3.15 A (slow-blow, internal) |
Output data
| Nominal output voltage | 24 V DC ±1 % |
|---|---|
| Setting range of the output voltage (USet) | 22.5 V DC … 28.5 V DC (> 24 V DC, constant capacity restricted) |
| Nominal output current (IN) | 1 A (-25 °C … 60 °C) |
| Derating | 60 °C … 70 °C (2.5%/K) |
| Connection in parallel | Yes, for assembling redundant systems and increasing efficiency |
| Connection in series | yes |
| Residual ripple | < 40 mVPP |
| Output power | 24 W |
| Typical response time | < 0.5 s |
| Peak switching voltages nominal load | < 50 mVPP(20 MHz) |
| Maximum power dissipation in no-load condition | < 1.2 W |
| Power loss nominal load max. | < 5 W |
General
| Net weight | 0.2 kg |
|---|---|
| Operating voltage display | Green LED |
| Efficiency | > 85 % (at 60 V DC and nominal values) |
| Insulation voltage input/output | 1.5 kV (type test) |
| 1 kV (routine test) | |
| Protection class | II |
| Degree of protection | IP20 |
| MTBF (IEC 61709, SN 29500) | |
| > 1147000 h (40 °C) | |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Assembly instructions | alignable: horizontally 0 mm, vertically 50 mm |
