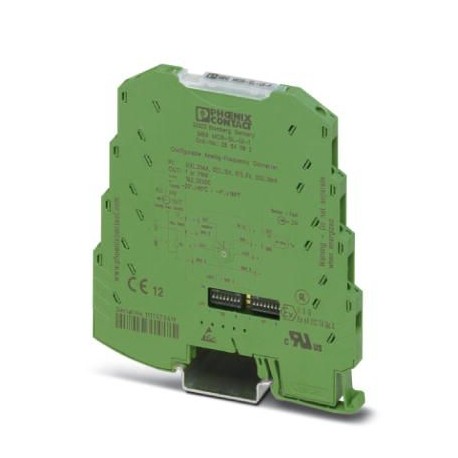

Key Commercial Data
| Orderkey | 2864082 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 110 (C-7-2015) |
| GTIN | 4046356046435 |
| Weight per Piece (excluding packing) | 108.300 g |
| Custom tariff number | 85437090 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C … 65 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Maximum altitude | ≤ 2000 m |
Input data
| Configurable/programmable | Yes |
|---|---|
| Current input signal | 0 mA … 20 mA |
| 4 mA … 20 mA | |
| 0 mA … 10 mA | |
| 2 mA … 10 mA | |
| Input resistance current input | approx. 50 Ω |
| Voltage input signal | 0 V … 5 V |
| 1 V … 5 V | |
| 0 V … 10 V | |
| 2 V … 10 V | |
| Input resistance of voltage input | approx. 110 kΩ |
Output data
| Number of outputs | 1 |
|---|---|
| Frequency output | 0 Hz … 10 kHz |
| 0 Hz … 5 kHz | |
| 0 Hz … 2.5 kHz | |
| 0 Hz … 1 kHz | |
| 0 Hz … 500 Hz | |
| 0 Hz … 250 Hz | |
| 0 Hz … 100 Hz | |
| 0 Hz … 50 Hz | |
| Load min. | 4 mA ≤ (UL/ RL) ≤ 20 mA |
| Output signal PWM | 7.8 kHz (10 bit) |
| 3.9 kHz (10 bit) | |
| 1.9 kHz (12 bit) | |
| 977 Hz (12 bit) | |
| 488 Hz (14 bit) | |
| 244 Hz (14 bit) | |
| 122 Hz (16 bit) | |
| 61 Hz (16 bit) | |
| Load min. | 12 mA ≤ (UL/ RL) ≤ 20 mA |
| Maximum switching voltage | 30 V |
| Load current maximum | 20 mA |
| Overrange/underrange | Can be set (via DIP switch) |
| Type of protection | Short-circuit protection, polarity reversal protection |
| Step response (0–99%) | < 15 ms (+ (1/f) smallest filter) |
| < 1 s (+ (1/f) largest filter) |
