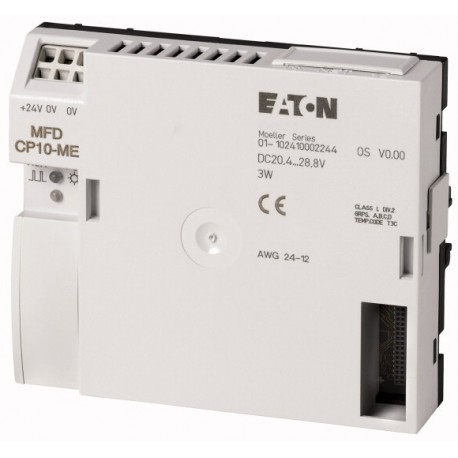

MFD-CP10-ME 133801 0004560809 EATON ELECTRIC Central processing unit/power supply unit, 24 V DC, expandable,..
MFD-CP10-ME 133801 0004560809 EATON ELECTRIC Central processing unit/power supply unit, 24 V DC, expandable,..
Central processing unit/power supply unit, 24 V DC, expandable, without easyNet, double memory like MFD-CP 8
Liên hệ:
4560809
Central processing unit/power supply unit, 24 V DC, expandable, without easyNet, double memory like MFD-CP 8
Product range
Multi-function-display MFD-Titan
Basic function
Power supply unit/CPU modules
Subrange
CPU modules
Supply voltage
24 V DC
easyNet/easyLink
ohne easyNet
Description
can be combined with display/operating unit MFD-80-.. and I/O module
Expandable: Digital/analog inputs/outputs and AS-Interface, PROFIBUS-DP, CANopen®, DeviceNet bus systems
Bussystem easyNet optional on board
Program and screen memory
Delivery with user program possible with MFD-COMBINATION product (Article no. 201801)
Expandable: Digital/analog inputs/outputs and AS-Interface, PROFIBUS-DP, CANopen®, DeviceNet bus systems
Bussystem easyNet optional on board
Program and screen memory
Delivery with user program possible with MFD-COMBINATION product (Article no. 201801)
Description
double program and screen memory like MFD-CP8…
Connection type
screw terminal
Degree of Protection
IP20
Multi-function-display MFD-Titan
Basic function
Power supply unit/CPU modules
Power supply unit/CPU modules
CPU modules
24 V DC
easyNet/easyLink
ohne easyNet
ohne easyNet
can be combined with display/operating unit MFD-80-.. and I/O module
Expandable: Digital/analog inputs/outputs and AS-Interface, PROFIBUS-DP, CANopen®, DeviceNet bus systems
Bussystem easyNet optional on board
Program and screen memory
Delivery with user program possible with MFD-COMBINATION product (Article no. 201801)
Expandable: Digital/analog inputs/outputs and AS-Interface, PROFIBUS-DP, CANopen®, DeviceNet bus systems
Bussystem easyNet optional on board
Program and screen memory
Delivery with user program possible with MFD-COMBINATION product (Article no. 201801)
double program and screen memory like MFD-CP8…
screw terminal
IP20
Technical data
General
Standards
EN 61000-6-1/-2/-3/-4, IEC 60068-2-6, IEC 60068-2-27
Dimensions (W x H x D)
107.5 x 90 x 30 mm
Weight
0.145 kg
Mounting
Fitted on the fixing shaft of the display or on top-hat rail according to IEC/EN 60715, 35 mm deep (without display)
Terminal capacities
Solid
0.2⁄4 (AWG 24 – 12) mm2
Flexible with ferrule
0.2⁄2.5 (AWG 24 – 12) mm2
Standard screwdriver
3.5 x 0.6 mm
Climatic environmental conditions
Operating ambient temperature
-25 to 55, cold as per IEC 60068-2-1, heat as per IEC 60068-2-2 °C
Condensation
Take appropriate measures to prevent condensation
Storage
– 40 – 70 °C
Relative humidity, non-condensing (IEC/EN 60068-2-30)
5 – 95 %
Air pressure (operation)
795 – 1080 hPa
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
IP20
Vibrations (IEC/EN 60068-2-6)Constant amplitude 0.15 mm
10 – 57 Hz
Vibrations (IEC/EN 60068-2-6)Constant acceleration 2 g
57 – 150 Hz
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
18 Impacts
Drop to IEC/EN 60068-2-31 [Drop height]
50 mm
Free fall, packaged (IEC/EN 60068-2-32)
1 m
Mounting position
Vertical or horizontal
Electromagnetic compatibility (EMC)
Electrostatic discharge (IEC/EN 61000-4-2, Level 3, ESD)Air discharge
8 kV
Electrostatic discharge (IEC/EN 61000-4-2, Level 3, ESD)Contact discharge
6 kV
Electromagnetic fields (RFI) to IEC EN 61000-4-3
10 V/m
Radio interference suppression
EN 55011 Class B, EN 55022 Class B
Burst Impulse (IEC/EN 61000-4-4, Level 3)Supply cable
2 kV
Burst Impulse (IEC/EN 61000-4-4, Level 3)Signal lines
2 kV
Power pulses (surge) (IEC/EN 61000-4-5)
2 (supply cables, symmetrical) kV
power pulses (surge) (IEC/EN 61000-4-5, level 2)
2 (supply cables symmetrical, MFD-AC-CP8..) kV
Immunity to line-conducted interference to (IEC/EN 61000-4-6)
10 V
Insulation resistance
Clearance in air and creepage distances
EN 50178, UL 508, CSA C22.2, No. 142
Insulation resistance
EN 50178
Back-up of real-time clock
Back-up of real-time clock
① Backup time (hours) with fully charged double layer capacitor
② Service life (years)
② Service life (years)
Accuracy of the real-time clock
Normally ±5 s/day (±0.5 h⁄year) s/day
Repetition accuracy of timing relays
Accuracy of timing relays (of values)
± 0.02 %
ResolutionRange “S”
5 ms
ResolutionRange “M:S”
1 s
ResolutionRange “H:M”
1 min
Retentive memory
Write cycles of the retentive memory
1010(read/write cycles)
Power supply
Rated operational voltage [Ue]
24 DC (-15⁄+20 %) V
Admissible range
20.4 – 28.8 V DC
Residual ripple
≦ 5 %
Input currentat 24 V DC
Normally 200 mA
Voltage dips
10 ms
Power lossHeat dissipation at 24 V DC
3.4 W
Note on heat dissipation
Current consumption at 24 V DC
Network easyNet
Stations
max. 8 Number
Data transfer rate/distance
1000 kBit/s, 6 m
500 Kbit/s, 25 m
250 Kbit/s, 40 m
125 kBit/s, 125 m
50 Kbit/s, 300 m
20 Kbit/s, 700 m
10 Kbit/s, 1000 m
500 Kbit/s, 25 m
250 Kbit/s, 40 m
125 kBit/s, 125 m
50 Kbit/s, 300 m
20 Kbit/s, 700 m
10 Kbit/s, 1000 m
Distance
5 m
Potential isolationFrom power supply
yes
Potential isolationFrom the inputs
yes
Potential isolationFrom the outputs
yes
Potential isolationto PC interface, memory card, easyNet, easyLink
yes
Bus termination (first and last station)
yes
Connection technique
RJ45, 8-pole
General
Standards
EN 61000-6-1/-2/-3/-4, IEC 60068-2-6, IEC 60068-2-27
Dimensions (W x H x D)
107.5 x 90 x 30 mm
Weight
0.145 kg
Mounting
Fitted on the fixing shaft of the display or on top-hat rail according to IEC/EN 60715, 35 mm deep (without display)
Terminal capacities
Solid
0.2⁄4 (AWG 24 – 12) mm2
Flexible with ferrule
0.2⁄2.5 (AWG 24 – 12) mm2
Standard screwdriver
3.5 x 0.6 mm
Climatic environmental conditions
Operating ambient temperature
-25 to 55, cold as per IEC 60068-2-1, heat as per IEC 60068-2-2 °C
Condensation
Take appropriate measures to prevent condensation
Storage
– 40 – 70 °C
Relative humidity, non-condensing (IEC/EN 60068-2-30)
5 – 95 %
Air pressure (operation)
795 – 1080 hPa
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
IP20
Vibrations (IEC/EN 60068-2-6)Constant amplitude 0.15 mm
10 – 57 Hz
Vibrations (IEC/EN 60068-2-6)Constant acceleration 2 g
57 – 150 Hz
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
18 Impacts
Drop to IEC/EN 60068-2-31 [Drop height]
50 mm
Free fall, packaged (IEC/EN 60068-2-32)
1 m
Mounting position
Vertical or horizontal
Electromagnetic compatibility (EMC)
Electrostatic discharge (IEC/EN 61000-4-2, Level 3, ESD)Air discharge
8 kV
Electrostatic discharge (IEC/EN 61000-4-2, Level 3, ESD)Contact discharge
6 kV
Electromagnetic fields (RFI) to IEC EN 61000-4-3
10 V/m
Radio interference suppression
EN 55011 Class B, EN 55022 Class B
Burst Impulse (IEC/EN 61000-4-4, Level 3)Supply cable
2 kV
Burst Impulse (IEC/EN 61000-4-4, Level 3)Signal lines
2 kV
Power pulses (surge) (IEC/EN 61000-4-5)
2 (supply cables, symmetrical) kV
power pulses (surge) (IEC/EN 61000-4-5, level 2)
2 (supply cables symmetrical, MFD-AC-CP8..) kV
Immunity to line-conducted interference to (IEC/EN 61000-4-6)
10 V
Insulation resistance
Clearance in air and creepage distances
EN 50178, UL 508, CSA C22.2, No. 142
Insulation resistance
EN 50178
Back-up of real-time clock
Back-up of real-time clock
① Backup time (hours) with fully charged double layer capacitor
② Service life (years)
② Service life (years)
Accuracy of the real-time clock
Normally ±5 s/day (±0.5 h⁄year) s/day
Repetition accuracy of timing relays
Accuracy of timing relays (of values)
± 0.02 %
ResolutionRange “S”
5 ms
ResolutionRange “M:S”
1 s
ResolutionRange “H:M”
1 min
Retentive memory
Write cycles of the retentive memory
1010(read/write cycles)
Power supply
Rated operational voltage [Ue]
24 DC (-15⁄+20 %) V
Admissible range
20.4 – 28.8 V DC
Residual ripple
≦ 5 %
Input currentat 24 V DC
Normally 200 mA
Voltage dips
10 ms
Power lossHeat dissipation at 24 V DC
3.4 W
Note on heat dissipation
Current consumption at 24 V DC
Network easyNet
Stations
max. 8 Number
Data transfer rate/distance
1000 kBit/s, 6 m
500 Kbit/s, 25 m
250 Kbit/s, 40 m
125 kBit/s, 125 m
50 Kbit/s, 300 m
20 Kbit/s, 700 m
10 Kbit/s, 1000 m
500 Kbit/s, 25 m
250 Kbit/s, 40 m
125 kBit/s, 125 m
50 Kbit/s, 300 m
20 Kbit/s, 700 m
10 Kbit/s, 1000 m
Distance
5 m
Potential isolationFrom power supply
yes
Potential isolationFrom the inputs
yes
Potential isolationFrom the outputs
yes
Potential isolationto PC interface, memory card, easyNet, easyLink
yes
Bus termination (first and last station)
yes
Connection technique
RJ45, 8-pole
Standards
EN 61000-6-1/-2/-3/-4, IEC 60068-2-6, IEC 60068-2-27
EN 61000-6-1/-2/-3/-4, IEC 60068-2-6, IEC 60068-2-27
107.5 x 90 x 30 mm
0.145 kg
Mounting
Fitted on the fixing shaft of the display or on top-hat rail according to IEC/EN 60715, 35 mm deep (without display)
Fitted on the fixing shaft of the display or on top-hat rail according to IEC/EN 60715, 35 mm deep (without display)
0.2⁄4 (AWG 24 – 12) mm2
0.2⁄2.5 (AWG 24 – 12) mm2
3.5 x 0.6 mm
-25 to 55, cold as per IEC 60068-2-1, heat as per IEC 60068-2-2 °C
Take appropriate measures to prevent condensation
– 40 – 70 °C
5 – 95 %
795 – 1080 hPa
IP20
10 – 57 Hz
57 – 150 Hz
18 Impacts
50 mm
1 m
Vertical or horizontal
8 kV
6 kV
10 V/m
EN 55011 Class B, EN 55022 Class B
2 kV
2 kV
2 (supply cables, symmetrical) kV
2 (supply cables symmetrical, MFD-AC-CP8..) kV
10 V
EN 50178, UL 508, CSA C22.2, No. 142
EN 50178
① Backup time (hours) with fully charged double layer capacitor
② Service life (years)
② Service life (years)
Normally ±5 s/day (±0.5 h⁄year) s/day
± 0.02 %
5 ms
1 s
1 min
1010(read/write cycles)
24 DC (-15⁄+20 %) V
20.4 – 28.8 V DC
≦ 5 %
Normally 200 mA
10 ms
3.4 W
Current consumption at 24 V DC
max. 8 Number
1000 kBit/s, 6 m
500 Kbit/s, 25 m
250 Kbit/s, 40 m
125 kBit/s, 125 m
50 Kbit/s, 300 m
20 Kbit/s, 700 m
10 Kbit/s, 1000 m
500 Kbit/s, 25 m
250 Kbit/s, 40 m
125 kBit/s, 125 m
50 Kbit/s, 300 m
20 Kbit/s, 700 m
10 Kbit/s, 1000 m
5 m
yes
yes
yes
yes
yes
RJ45, 8-pole
Technical data for design verification
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
3.4 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+55 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard’s requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard’s requirements.
10.3 Degree of protection of ASSEMBLIES
Meets the product standard’s requirements.
10.4 Clearances and creepage distances
Meets the product standard’s requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder’s responsibility.
10.8 Connections for external conductors
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder’s responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder’s responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder’s responsibility.
10.12 Electromagnetic compatibility
Is the panel builder’s responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Rated operational current for specified heat dissipation [In]
0 A
0 A
0 W
0 W
Static heat dissipation, non-current-dependent [Pvs]
3.4 W
3.4 W
0 W
-25 °C
+55 °C
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Does not apply, since the entire switchgear needs to be evaluated.
Does not apply, since the entire switchgear needs to be evaluated.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Does not apply, since the entire switchgear needs to be evaluated.
Does not apply, since the entire switchgear needs to be evaluated.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
PLC’s (EG000024) / Graphic panel (EC001412)
Electric engineering, automation, process control engineering / Display and control component / Panel (HMI) / Graphic panel (HMI) ([email protected] [AFX016003])
Supply voltage AC 50 Hz
0 – 0 V
Supply voltage AC 60 Hz
0 – 0 V
Supply voltage DC
20.4 – 28.8 V
Voltage type of supply voltage
DC
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
3
With SW interfaces
Yes
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Type of display
Other
With colour display
No
Number of colours of the display
0
Number of grey-scales/blue-scales of display
0
Screen diagonal
0 inch
Number of pixels, horizontal
0
Number of pixels, vertical
0
Useful project memory/user memory
64 kByte
With numeric keyboard
No
With alpha numeric keyboard
No
Number of function buttons, programmable
9
Number of buttons with LED
0
Number of system buttons
0
Touch technology
None
With message indication
Yes
With message system (incl. buffer and confirmation)
No
Process value representation (output) possible
Yes
Process default value (input) possible
Yes
With recipes
No
Number of password levels
1
With printer output
No
Number of online languages
256
Additional software components, loadable
Yes
Degree of protection (IP), front side
IP20
Degree of protection (NEMA), front side
1
Operation temperature
25 – 55 °C
Rail mounting possible
Yes
Wall mounting/direct mounting
No
Suitable for safety functions
No
Width of the front
0 mm
Height of the front
0 mm
Built-in depth
25 mm
Electric engineering, automation, process control engineering / Display and control component / Panel (HMI) / Graphic panel (HMI) ([email protected] [AFX016003])
0 – 0 V
0 – 0 V
Supply voltage DC
20.4 – 28.8 V
20.4 – 28.8 V
DC
0
0
0
0
0
0
0
0
0
3
Yes
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
Other
No
0
0
0 inch
0
0
64 kByte
No
No
9
0
0
None
Yes
No
Yes
Yes
No
1
No
256
Yes
IP20
1
25 – 55 °C
Yes
No
No
0 mm
0 mm
25 mm
Product Standards
IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking
UL File No.
E135462
UL Category Control No.
NRAQ
CSA File No.
012528
CSA Class No.
2252-01 + 2258-02
North America Certification
Request filed for UL and CSA
Degree of Protection
IEC: IP20, UL/CSA Type: –
IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking
UL File No.
E135462
E135462
NRAQ
012528
CSA Class No.
2252-01 + 2258-02
2252-01 + 2258-02
Request filed for UL and CSA
IEC: IP20, UL/CSA Type: –
Sản phẩm tương tự
Modular Switchgear – Big Home
PLS6-C40/3-MW 242953 EATON ELECTRIC Over current switch, 40A, 3 p, type C characteristic
Modular Switchgear – Big Home
PLS6-C50/3-MW 242954 EATON ELECTRIC Over current switch, 50A, 3 p, type C characteristic
Modular Switchgear – Big Home
PLS6-C4/4-MW 243079 EATON ELECTRIC Over current switch, 4A, 4 p, type C characteristic
Modular Switchgear – Big Home
PLS6-C20/4-MW 243088 EATON ELECTRIC Over current switch, 20A, 4 p, type C characteristic
Modular Switchgear – Big Home
PLS6-C4/3N-MW 243010 EATON ELECTRIC Over current switch, 4A, 3pole+N, type C characteristic
Modular Switchgear – Big Home
PLS6-C50/3N-MW 243023 EATON ELECTRIC Over current switch, 50A, 3pole+N, type C characteristic
Modular Switchgear – Big Home
PLS6-C63/3N-MW 243024 EATON ELECTRIC Over current switch, 63A, 3pole+N, type C characteristic
Modular Switchgear – Big Home
PLS6-C16/4-MW 243087 EATON ELECTRIC Over current switch, 16A, 4 p, type C characteristic
