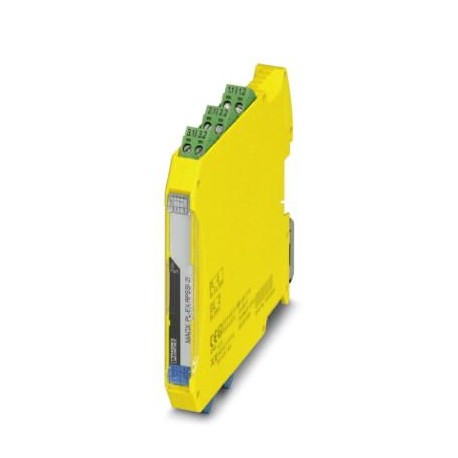

Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C (Any mounting position) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Maximum altitude | ≤ 2000 m |
| Permissible humidity (operation) | 10 % … 95 % (non-condensing) |
| Noise immunity | EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
Input data
| Signal input | Repeater power supply operation |
|---|---|
| Current input signal | 4 mA … 20 mA |
| Transmitter supply voltage | > 16 V (20 mA) |
| > 15.1 V (23 mA) | |
| Signal input | Signal conditioner operation |
| Current input signal | 4 mA … 20 mA |
| Voltage drop | approx. 3.9 V |
Output data
| Signal output | Repeater power supply operation |
|---|---|
| Current output signal | 4 mA … 20 mA (active) |
| Load/output load current output | < 450 Ω (20 mA) |
| < 380 Ω (23 mA) | |
| Output ripple | < 20 mVrms |
| Output behavior in the event of an error | 0 mA (Cable break in the input) |
| ≥ 23 mA (Cable short-circuit in the input) | |
| Signal output | Signal conditioner operation |
| Current output signal | 4 mA … 20 mA (active) |
| Load/output load current output | < 450 Ω (20 mA) |
| < 380 Ω (23 mA) | |
| Output ripple | < 20 mVrms |
| Output behavior in the event of an error | 0 mA (Cable break in the input) |
| 0 mA (Cable short-circuit in the input) |
Power supply
| Designation | Repeater power supply operation |
|---|---|
| Nominal supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC … 30 V DC (24 V DC -20%…+25%) |
| Max. current consumption | < 75 mA (24 V DC / 20 mA) |
| Power dissipation | < 1.45 W (24 V DC/ 20 mA) |
| Designation | Signal conditioner operation |
| Nominal supply voltage range | 19.2 V DC … 30 V DC (24 V DC -20%…+25%) |
| Max. current consumption | < 46 mA (24 V DC / 20 mA) |
| Power dissipation | < 1.2 W (24 V DC/ 20 mA) |
