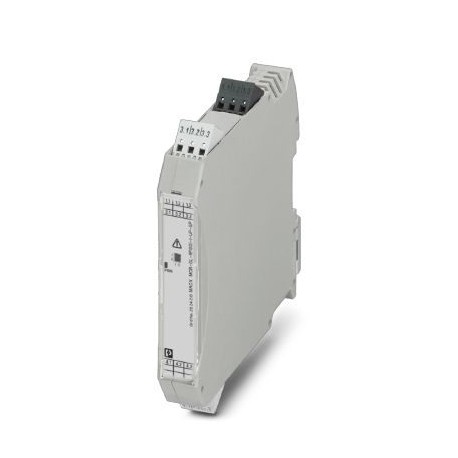

Key Commercial Data
| Orderkey | 2924210 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 122 (C-5-2017) |
| GTIN | 4046356449502 |
| Weight per Piece (excluding packing) | 144.500 g |
| Custom tariff number | 85437090 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C (Any mounting position) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Maximum altitude | ≤ 2000 m |
| Permissible humidity (operation) | 10 % … 95 % (non-condensing) |
| Noise immunity | EN 61000-6-2 |
Input data
| Signal input | Repeater power supply operation |
|---|---|
| Current input signal | 4 mA … 20 mA |
| Transmitter supply voltage | > 16 V (20 mA) |
| > 15.3 V (22.5 mA) | |
| Signal input | Signal conditioner operation |
| Current input signal | 0 mA … 20 mA |
| 4 mA … 20 mA | |
| Voltage drop | < 3.5 V (in input isolating amplifier operation) |
Output data
| Signal output | Repeater power supply operation |
|---|---|
| Voltage output signal | 1 V … 5 V (internal resistance, 250 Ω, 0.1%) |
| Configurable via DIP switches | |
| Current output signal | 4 mA … 20 mA (active) |
| 4 mA … 20 mA (14 … 26 V ext. source voltage) | |
| Transmission Behavior | 1:1 to input signal |
| Load/output load current output | < 600 Ω (20 mA) |
| < 525 Ω (22.5 mA) | |
| Output ripple | < 20 mVrms |
| Output behavior in the event of an error | 0 mA (Cable break in the input) |
| ≥ 22.5 mA (Cable short-circuit in the input) | |
| Signal output | Signal conditioner operation |
| Voltage output signal | 0 V … 5 V (internal resistance, 250 Ω, 0.1%) |
| 1 V … 5 V (internal resistance, 250 Ω, 0.1%) | |
| Current output signal | 0 mA … 20 mA (active) |
| 4 mA … 20 mA (active) | |
| 0 mA … 20 mA (14 … 26 V ext. source voltage) | |
| 4 mA … 20 mA (14 … 26 V ext. source voltage) | |
| Load/output load current output | < 600 Ω (20 mA) |
| < 525 Ω (22.5 mA) | |
| Output ripple | < 20 mVrms |
| Output behavior in the event of an error | 0 mA (Cable break in the input) |
| 0 mA (Cable short-circuit in the input) |
