MACX MCR-RTD-I 1050192 PHOENIX CONTACT Temperature transducer, converts signals from resistance temperature ..
MACX MCR-RTD-I 1050192 PHOENIX CONTACT Temperature transducer, converts signals from resistance temperature ..

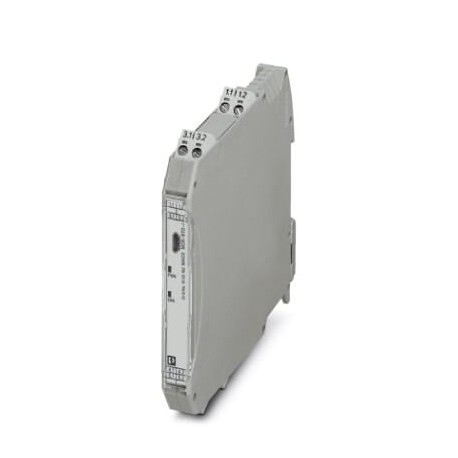

Temperature transducer, converts signals from resistance temperature detectors and resistors into analog 0/4 – 20 mA signals. Freely programmable, screw connection, SIL, 3-way electrical isolation, standard configuration.
Liên hệ:
Key Commercial Data
| Orderkey | 1050192 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 130 (C-5-2019) |
| GTIN | 4055626666105 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85437090 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C (Any mounting position) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Permissible humidity (operation) | 5 % … 95 % (non-condensing) |
| Noise immunity | EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
Input data
| Sensor types (RTD) that can be used | Pt, Ni, Cu sensors: 2, 3, 4-wire |
|---|---|
| Temperature measuring range | -200 °C … 850 °C (Range depending on the sensor type) |
| Input signal range | 0 Ω … 50 kΩ |
| Potentiometer resistance range | 0 Ω … 50 kΩ |
| Cable resistance | ≤ 50 Ω per cable |
| Sensor input current | 10 µA … 210 µA (up to 2 x 210 µA for 3-conductor) |
| Measuring range span | ≥ 50 K |
Output data
| Signal output | Current output |
|---|---|
| Configurable/programmable | Yes |
| Current output signal | 0 mA … 20 mA |
| 4 mA … 20 mA (SIL) | |
| Max. current output signal | ≥ 21 mA |
| Load/output load current output | ≤ 600 Ω |
| Output ripple (current) | < 15 µAPP |
| Behavior in the event of a sensor error | As per NE 43 or can be freely defined |
Power supply
| Nominal supply voltage | 24 V DC |
|---|---|
| Supply voltage range | 19.2 V DC … 30 V DC (24 V DC -20%…+25%) |
| Power dissipation | ≤ 0.76 W |
| Power consumption | ≤ 1 W |
General
| No. of channels | 1 |
|---|---|
| Transmission error, typical | 0.1 % (e.g. for Pt 100, 300 K span, 4 … 20 mA) |
| Temperature coefficient, typical | 0.01 %/K |
| Step response (0–99%) | typ. 1 s |
| ≤ 1.7 s | |
| Alignment zero | ± 5 % |
| Alignment span | ± 5 % |
| Status display | Green LED (supply voltage, PWR) |
| Red LED, flashing 2.4 Hz (cable error, sensor error on input or output, ERR) | |
| Red LED, flashing 1.2 Hz (service operation, ERR) | |
| Red LED, permanently on (module error, ERR) | |
| Electromagnetic compatibility | Conformance with EMC directive |
| Interference emission | EN 61000-6-4 |
| Housing material | PA 6.6-FR |
| Color | gray |
| Designation | Input/output/power supply |
| Electrical isolation | 300 Vrms(Rated insulation voltage (overvoltage category II; degree of pollution 2, safe isolation as per EN 61010-1)) |
| 2.5 kV (50 Hz, 1 min., test voltage) | |
| Designation | Input/output |
| Electrical isolation | 375 V (Peak value in accordance with EN 60079-11) |
| Designation | Input/power supply |
| Electrical isolation | 375 V (Peak value in accordance with EN 60079-11) |
| Conformance | CE-compliant, additionally EN 61326 |
| ATEX | II 3 G Ex ec ic IIC T4 Gc |
| IECEx | Ex ec ic IIC T4 Gc |
| SIL | 2 |
EMC data
| Designation | Electromagnetic RF field |
|---|---|
| Standards/regulations | EN 61000-4-3 |
| Typical deviation from the measuring range final value | 1 % |
| Designation | Fast transients (burst) |
| Standards/regulations | EN 61000-4-4 |
| Typical deviation from the measuring range final value | 1 % |
| Designation | Conducted interferences |
| Standards/regulations | EN 61000-4-6 |
| Typical deviation from the measuring range final value | 1 % |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC directive |
|---|---|
| Noise emission | EN 61000-6-4 |
| Designation | Electromagnetic RF field |
| Standards/regulations | EN 61000-4-3 |
| EN 61000-4-4 | |
| Designation | Conducted interferences |
| Standards/regulations | EN 61000-4-6 |
| Conformance | CE-compliant, additionally EN 61326 |
| ATEX | II 3 G Ex ec ic IIC T4 Gc |
| IECEx | Ex ec ic IIC T4 Gc |
| DNV GL-Temperature | B |
| DNV GL-Humidity | B |
| DNV GL-Vibration | A |
| DNV GL-EMC | B |
| DNV GL-Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
