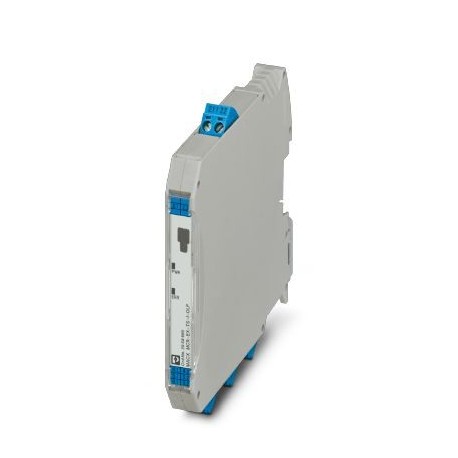

MACX MCR-EX-TS-I-OLP 2908660 PHOENIX CONTACT The output-loop-powered temperature transmitter transmits up to..
MACX MCR-EX-TS-I-OLP 2908660 PHOENIX CONTACT The output-loop-powered temperature transmitter transmits up to..
The output-loop-powered temperature transmitter transmits up to two sensor signals from RTD and TC sensors as well as from resistance-type sensors and voltage encoders via the HART communication or 4 … 20 mA, configurable. SIL 2/3, intrinsic safety, screw connection.
Liên hệ:
Key Commercial Data
| Orderkey | 2908660 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 190 (C-5-2019) |
| GTIN | 4055626355429 |
| Weight per Piece (excluding packing) | 210.000 g |
| Custom tariff number | 85437090 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C |
|---|---|
| -40 °C … 70 °C (SIL active) | |
| Ambient temperature (storage/transport) | -40 °C … 100 °C |
| Maximum altitude | ≤ 4000 m (Above sea level) |
| Permissible humidity (operation) | 5 % … 95 % (non-condensing) |
| Degree of protection | IP20 (not assessed by UL) |
Connection data
| Connection method | Screw connection |
|---|---|
| Stripping length | 7 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² … 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 14 |
| Torque | 0.5 Nm … 0.6 Nm |
General
| Step response (0–99%) | 0.8 s (TC) |
|---|---|
| Degree of pollution | 2 |
| Overvoltage category | II |
| Color | gray |
| Conformance | CE-compliant |
| ATEX | II 2 (1) G Ex ib [ia Ga] IIC T6…T4 Gb |
| IECEx | Ex ib [ia Ga] IIC T6…T4 Gb |
| UL, USA/Canada | UL 61010 Recognized |
| FM approval | Exia / Class I / Div. 1, 2 / Group ABCD |
| CSA | AIS / Class I / Div. 1 / ABCD |
Standards and Regulations
| Conformance | CE-compliant |
|---|---|
| ATEX | II 2 (1) G Ex ib [ia Ga] IIC T6…T4 Gb |
| IECEx | Ex ib [ia Ga] IIC T6…T4 Gb |
| UL, USA/Canada | UL 61010 Recognized |
| FM approval | Exia / Class I / Div. 1, 2 / Group ABCD |
| NI, Class I, Div. 2, Groups A, B, C, D | |
| CSA | AIS / Class I / Div. 1 / ABCD |
| NI / Class I / Div. 2 / ABCD T6/T5/T4 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C |
|---|---|
| -40 °C … 70 °C (SIL active) | |
| Ambient temperature (storage/transport) | -40 °C … 100 °C |
| Maximum altitude | ≤ 4000 m (Above sea level) |
| Permissible humidity (operation) | 5 % … 95 % (non-condensing) |
| Degree of protection | IP20 (not assessed by UL) |
