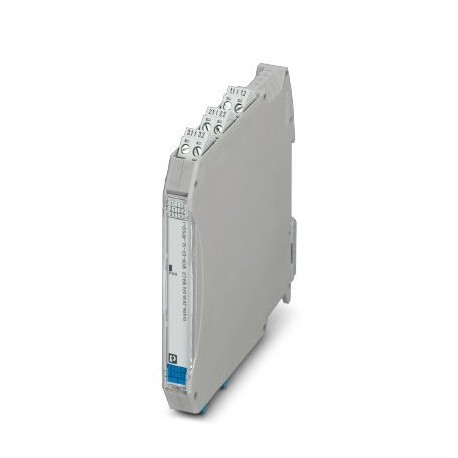

Key Commercial Data
| Orderkey | 2865340 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 140 (C-5-2017) |
| GTIN | 4046356160353 |
| Weight per Piece (excluding packing) | 160.000 g |
| Custom tariff number | 85437090 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C (Any mounting position) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Maximum altitude | ≤ 2000 m |
| Permissible humidity (operation) | 10 % … 95 % (non-condensing) |
| Noise immunity | EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
Input data
| Signal input | Active current input, intrinsically safe |
|---|---|
| Current input signal | 4 mA … 20 mA |
| Transmitter supply voltage | > 16 V (20 mA) |
| > 15.3 V (22.5 mA) | |
| Underload/overload signal range | 0 mA … 24 mA (Extended transmission range for diagnostics) |
| Polarization and surge protection | Yes |
| Signal input | Passive current input, intrinsically safe |
| Current input signal | 0 mA … 20 mA |
| 4 mA … 20 mA | |
| Voltage drop | < 3.5 V (in input isolating amplifier operation) |
| Underload/overload signal range | 0 mA … 24 mA (Extended transmission range for diagnostics) |
Output data
| Signal output | Current output (active and passive) |
|---|---|
| Current output signal | 4 mA … 20 mA (active) |
| 4 mA … 20 mA (14 … 26 V ext. source voltage) | |
| Transmission Behavior | 1:1 to input signal |
| Load/output load current output | < 1000 Ω (20 mA) |
| < 825 Ω (24 mA) | |
| Output ripple | < 20 mVrms |
| Output behavior in the event of an error | 0 mA (Cable break in the input) |
| ≥ 22.5 mA (Cable short-circuit in the input) | |
| Signal output | Current output (active and passive) |
| Current output signal | 0 mA … 20 mA (active) |
| 4 mA … 20 mA (active) | |
| 0 mA … 20 mA (14 … 26 V ext. source voltage) | |
| 4 mA … 20 mA (14 … 26 V ext. source voltage) | |
| Transmission Behavior | 1:1 to input signal |
| Load/output load current output | < 1000 Ω (20 mA) |
| < 825 Ω (24 mA) | |
| Output ripple | < 20 mVrms |
| Output behavior in the event of an error | 0 mA (Cable break in the input) |
| 0 mA (Cable short-circuit in the input) |
