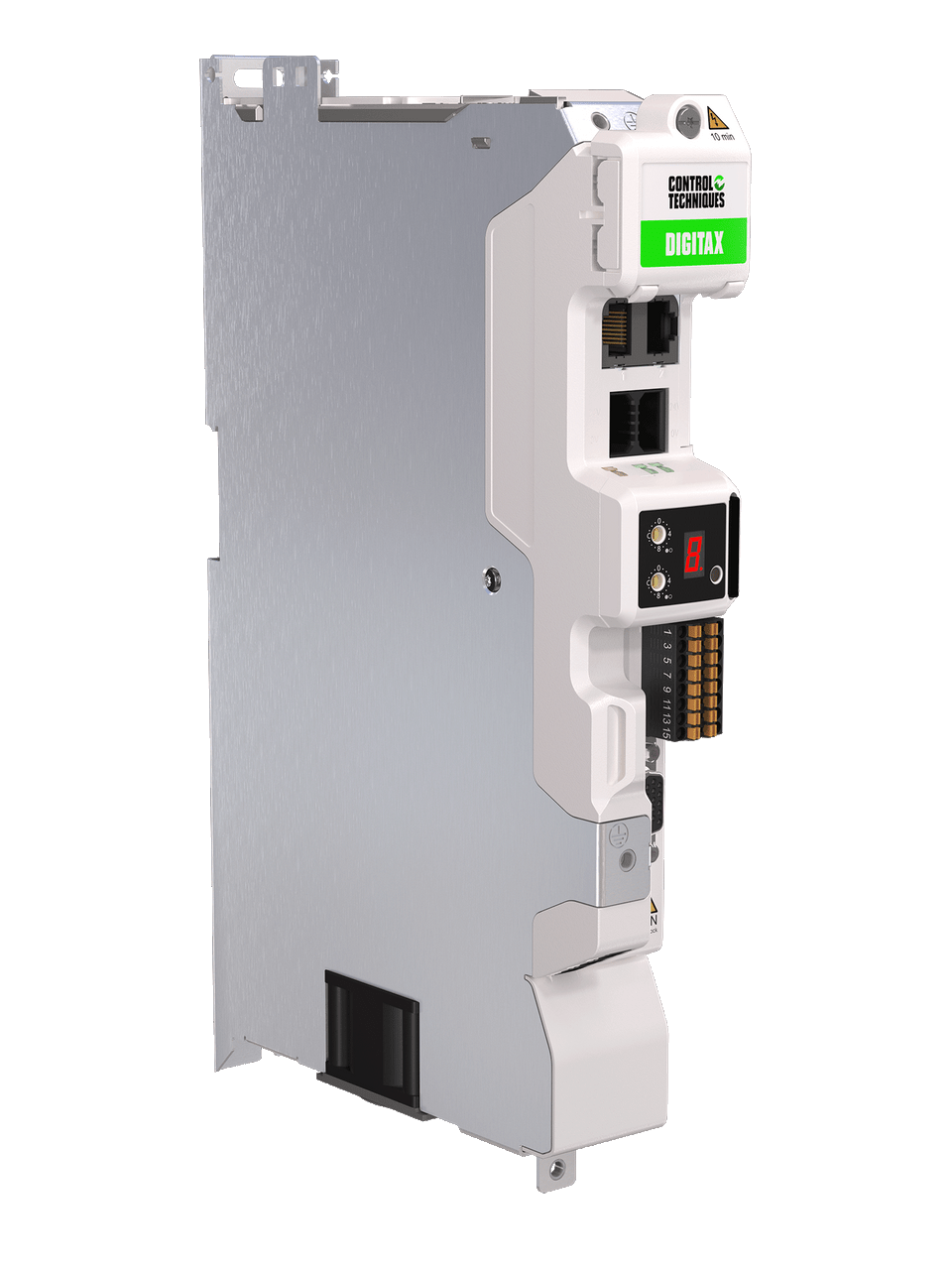

M751-02200120A10101AB110 Nidec Control Techniques Digitax HD

SKU:: M751-02200120A10101AB110
Condition:: New
Weight:: 5.00 LBS
Width:: 6.00
(in)
Height:: 14.00
(in)
Depth:: 10.00
(in)
Shipping:: Calculated at Checkout

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

Mô tả

Product Description

M751-02200120A10101AB110

Nidec Control Techniques Digitax HD

M751 200V 3ph 12A RS485

Base servo drive for configuration flexibility

Digitax HD M751 Base is a servo drive that offers configuration flexibility with two option slots for functionality extension and customization.

With built-in RS485 communications, Digitax M751 also features an on-board Advanced Motion Controller for distributed 1.5 axis motion control.

Features

Maximum performance

300% peak current performance pulse-duty overload
Optimized control loops for high dynamic performance

62.5 μs current loop
250 μs position and speed loop

Up to 16 kHz switching frequency
Supports a wide range of feedback technologies including Quadrature, SinCos (including absolute), SSI, BiSS, EnDat (up to 4 Mb with EnDat 2.2) and resolvers
Maximum performance package with high torque density, low inertia Unimotor hd servo motors
Analog and pulse/direction control for centralized motion
Advanced 1.5 axes Motion Controller, key features include:
- Real-time tasks
- 250 μs cycle time
- Motion profile generator
- Electronic gearbox
- Interpolated CAM
- 2 Homing functions
- High speed position freeze

Minimum size

1.6 in (40 mm) drive width and option bracket adds 0.86 in (22 mm), providing a highly competitive maximum drive width of 2.44 in (62 mm)
Reduce cabinet height by directly stacking rows of drives. Patented Ultraflow™ technology expels heat directly outside of the cabinet through the rear of the drive (drive heat dissipation can also be achieved via vents on the top of the drive, as standard).
Fits into cabinets just 8 inches (200 mm) deep

Easy installation and setup

DIN rail alignment
Kits for easy multi-axis installation
Single motor cable and electronic motor name plate for fast set up
Seamless motor-drive pairing with Unimotor hd servo motors
Easy access pluggable connectors
Rapid commissioning with the Connect PC tool and SD cards
Machine Control Studio provides a flexible and intuitive environment for programming automation and motion control features
- Programmable with IEC61131 standard languages

Flexibility

Two option slots for functionality extension and customization (see available option modules)
Built-in RS485 communications

Safety on-board

Reduced downtime with machine safety- Integrated dual safe torque off- Meets SIL3 (Safety Integrity Level 3) and PLe (Performance Level e)

Specifications

Approval & Listings

cUL	USA and Canada (cUL Listed). UL File number: E171230
CE	European Union (all applicable directives and regulations LVD, EMD, RoHS, REACH, Energy related products)
UKCA	United Kingdom (all applicable regulations)
RCM	Australia and New Zealand (Responsible Supplier Registration No. E6934)
EAC	Russian Customs Union. All Digitax HD models
KC South Korea	Certificate Nos: R-R-461-M751-03400160A R-R-461-M751-01400042A R-R-461-M751-012400105A
Functional Safety	Safe Torque Off function. TÜV Rheinland Type Examination Certificates: 01/205/5270.02/17 (Unidrive-M and derivative products) 01/205/5409.02/21 (SI-Safety option module) 01/205/5720.00/19 (MiS210, MiS250 option modules) The safety function “Safe Torque Off” can be used in applications up to Cat 4. PL e according to EN ISO 13849-1, SIL 3 according to EN 61800-5-2/ EN 62061/ IEC 61508, and in lift applications according to EN 81-1 and EN81-2.
UL Functional Safety	Unidrive-M all products File E171230 Vol. 11 Sec. 1 Issued: 2015-01-22 Compliance with specific requirements of NFPA 79
Functional Safety for Elevators	TÜV Nord certificates: 44 799 17002402 (Frequency converters with Safe Torque Off function for lift drives)
ISO	Quality system: ISO 9001 (Certificate Nos. FM 739405) Environmental management system: ISO 14001 (Certificate No. EMS 739789) Occupational health and safety: ISO 45001 (Certificate No. 5430)
China RoHS	Chinese Order No. 32, 2016; Administrative Measures for the Restriction of Hazardous Substances in Electrical and Electronic Equipment (China RoHS 2),
EPA TSCA regulations	All Commander and Uni-M products U.S. Environmental Protection Agency (“EPA”) recently promulgated regulations under the Toxic Substances Control Act (“TSCA”)
IHM, Basel convention,	MEPC 68/21 / Add.1, Annex 17, Resolution MEPC.269(68) 2015 Guidelines for the development of the inventory of hazardous materials.
Responsible Minerals Initiative (RMI)	CMRT compliance

Functional Safety

All Unidrive M drives have integrated dual Safe Torque Off (STO) inputs, certified to SIL3 / PLe, providing an elegant and reliable safety solution.
The addition of an MiS210 safety option extends the built-in STO with the ability to safely monitor and/or restrict the scope of motion.
Safety functions include: STO, SBC, SOS, SS1, SS2, SLS, SSM, SLA, SDI, SLP & SES
For maximum flexibility in the safety system architecture, the modules support both wired and network safety connections: CIP-Safety on EtherNet/IP and Safety over EtherCAT (FSoE).
To find out more, visit our Functional Safety page.

Options

Keypads

Remote Keypad RTC

The keypad is remote mountable, allowing flexible mounting on the outside of a panel (meets IP54/NEMA 12). Three line plain text, multi-language LCD keypad for rapid set-up and helpful diagnostics. Battery operated real-time clock allows accurate time stamping of events, aiding diagnostics.

KI Compact Display

The display (fitted on M753, optional on M751) ensures access to drive diagnostics even in the absence of network connectivity. Includes 2 rotary switches for hardware setting of the node address for faster commissioning of the motion network.

KI-Compact 485 Adaptor

This allows the drive to communicate via RS485. This is commonly used for programming if the drive has no keypad.

System Integration Modules – Feedback
