M600-11502000E10101AN100 Nidec Control Techniques Unidrive M600

Product Description

M600-11502000E10101AN100

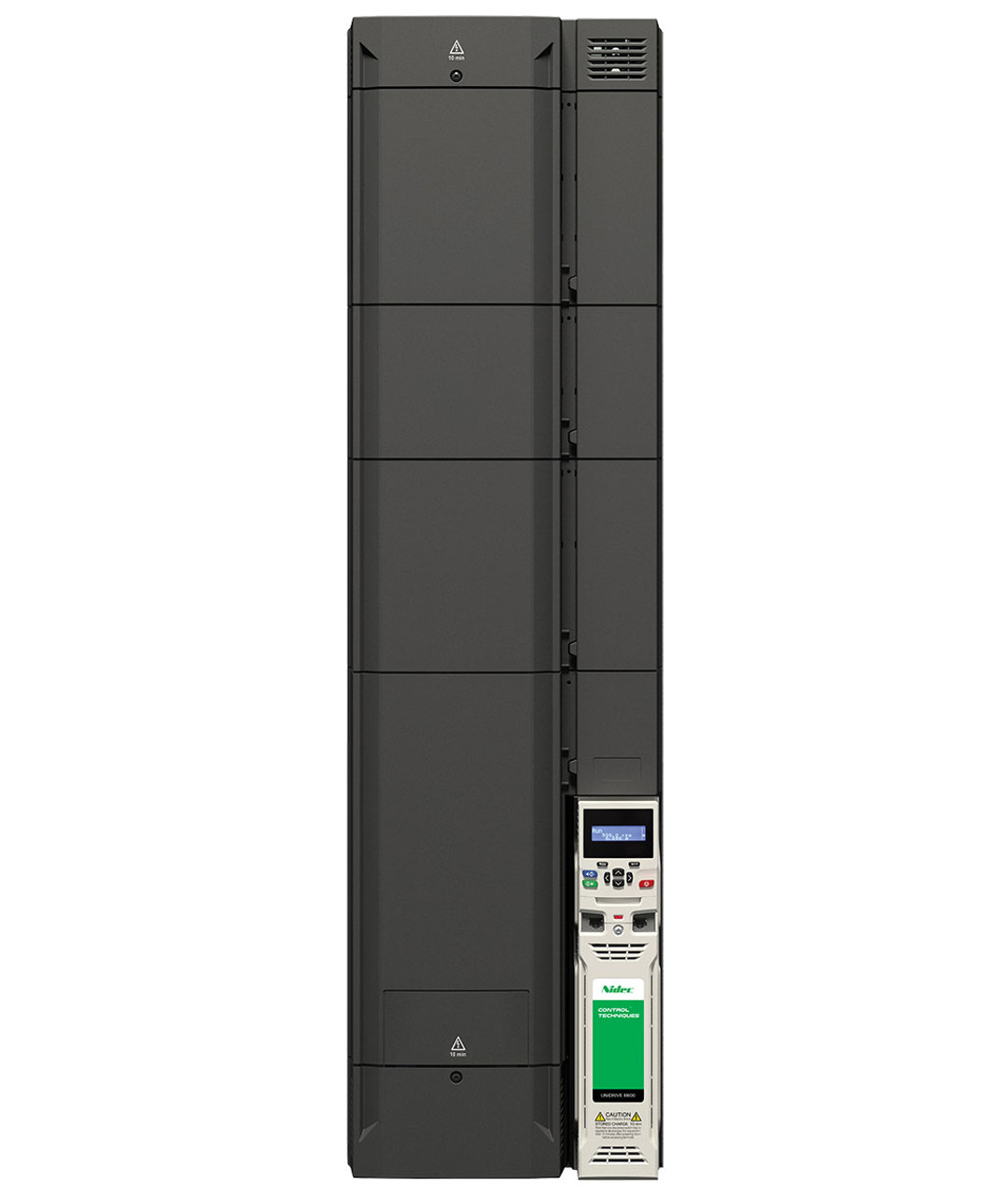

Nidec Control Techniques Unidrive M600

Open/Closed Loop Induction Motor Drive with Open Loop PM Motor Control and Single Safe Torque Off Channel

250HP 248A Normal Duty

200HP 200A Heavy Duty

50/60Hz 575VAC 3 Phase Input and Output

No Dynamic Brake

Requires External AC Line Reactor – LRM0250A

Optional Enhanced Keypad – KI-KEYPAD-LCD or KI-KEYPAD-RTC

Enhanced throughput with high performance open-loop control of induction and permanent magnet motors

• Advanced Rotor Flux Control (RFC) algorithm gives maximum stability and control of induction and permanent magnet motors.
• 200% motor overload suitable for heavy industrial machinery applications.

Reduce system costs by directly integrating with applications

• M600 incorporates an onboard PLC which can execute Machine Control Studio (IEC61131-3) programs for logic control, sequencing, speed following and digital lock – removing the need for additional PLCs.
• Fit up to three SI modules to add safe motion, speed feedback, additional I/O and fieldbus communications.
