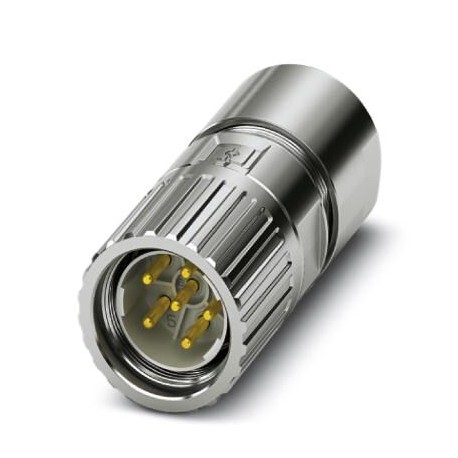

M23-5EP198A8023 1628881 PHOENIX CONTACT Cable connector, M23 PRO, straight short, shielded: yes, Screw locki..
M23-5EP198A8023 1628881 PHOENIX CONTACT Cable connector, M23 PRO, straight short, shielded: yes, Screw locki..
Cable connector, M23 PRO, straight short, shielded: yes, Screw locking, M23, No. of pos.: 5+PE, type of contact: Pin, Crimp connection, cable diameter range: 7.5 mm … 12 mm
Liên hệ:
Key Commercial Data
| Orderkey | 1628881 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 146 (C-2-2019) |
| GTIN | 4055626617770 |
| Weight per Piece (excluding packing) | 120.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Data of the insulating body
| Note | Order information: Order crimp contacts 6 x Ø 2 mm separately |
|---|---|
| Insulator material | PA 6.6 |
| Contact connection method | Crimp connection |
| Type of contacts | Pin |
| Application | Power |
| Number of positions | 6 |
| Contact diameter of power contacts | 2 mm |
| Litz wire cross section of power contacts min. | 0.25 mm² |
| Litz wire cross section of power contacts max. | 4 mm² |
| Rated current for power contacts | 30 A |
| Additional text | for max. connection cross section |
| Rated voltage of power contact | 630 V |
| Rated surge voltage | 6 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Installation height | 2000 m |
Housing data
| Housing material | GD-Zn |
|---|---|
| Type of locking | Screw locking |
| Degree of protection (when plugged in) | IP66 / IP68 (2m / 24h) / IP69K |
| Thread type | M23 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
Data of the insulating body
| Note | Order information: Order crimp contacts 6 x Ø 2 mm separately |
|---|---|
| Insulator material | PA 6.6 |
| Contact connection method | Crimp connection |
| Type of contacts | Pin |
| Application | Power |
| Number of positions | 6 |
| Contact diameter of power contacts | 2 mm |
| Litz wire cross section of power contacts min. | 0.25 mm² |
| Litz wire cross section of power contacts max. | 4 mm² |
| Rated current for power contacts | 30 A |
| Additional text | for max. connection cross section |
| Rated voltage of power contact | 630 V |
| Rated surge voltage | 6 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Installation height | 2000 m |
