M23-17S1N8A80DU 1629204 PHOENIX CONTACT Cable connector, M23 PRO, straight, shielded: yes, Screw locking, M2..
M23-17S1N8A80DU 1629204 PHOENIX CONTACT Cable connector, M23 PRO, straight, shielded: yes, Screw locking, M2..

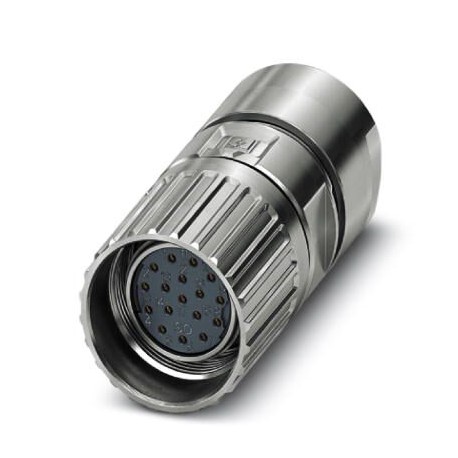

Cable connector, M23 PRO, straight, shielded: yes, Screw locking, M23, No. of pos.: 17, type of contact: Socket, Crimp connection, cable diameter range: 3 mm … 15 mm
Liên hệ:
Key Commercial Data
| Orderkey | 1629204 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 76 (C-2-2019) |
| GTIN | 4055626618371 |
| Weight per Piece (excluding packing) | 100.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Data of the insulating body
| Note | Order information: Order crimp contacts Ø 1 mm separately |
|---|---|
| Coding | N |
| Insulator material | PA 6.6 |
| Contact connection method | Crimp connection |
| Type of contacts | Socket |
| Application | Signal |
| Number of positions | 17 |
| Direction of rotation | Standard |
| Contact diameter of signal contacts | 1 mm |
| Litz wire cross section of signal contacts min. | 0.08 mm² |
| Litz wire cross section of signal contacts max. | 1 mm² |
| Rated current of each signal contact at 25°C | 8 A |
| Additional text | for max. connection cross section |
| Rated voltage of signal contact | 125 V |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Additional text | for max. connection cross section |
Housing data
| Housing material | GD-Zn |
|---|---|
| Type of locking | Screw locking |
| Degree of protection (when plugged in) | IP66 / IP68 (2 m / 24 h) |
| Thread type | M23 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
Data of the insulating body
| Note | Order information: Order crimp contacts Ø 1 mm separately |
|---|---|
| Coding | N |
| Insulator material | PA 6.6 |
| Contact connection method | Crimp connection |
| Type of contacts | Socket |
| Application | Signal |
| Number of positions | 17 |
| Direction of rotation | Standard |
| Contact diameter of signal contacts | 1 mm |
| Litz wire cross section of signal contacts min. | 0.08 mm² |
| Litz wire cross section of signal contacts max. | 1 mm² |
| Rated current of each signal contact at 25°C | 8 A |
| Additional text | for max. connection cross section |
| Rated voltage of signal contact | 125 V |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Additional text | for max. connection cross section |
