Key Commercial Data
| Orderkey | 1627299 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 126 (C-2-2017) |
| GTIN | 4055626297811 |
| Custom tariff number | 85444995 |

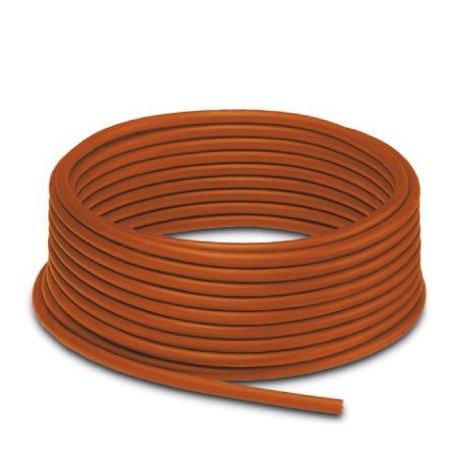

Cable specifications
| Type of cable | HDSLC11Y |
|---|---|
| Signal type | CAT5 |
| Transmission speed | 100 Mbps (Data interface) |
| Shielded | yes |
| Cable structure | (5x 10 + (4x 1.5) + (4x 0.34)C) |
| External cable diameter | 21.4 mm ±0.7 mm |
| Outer sheath, material | PUR |
| Material wire insulation | PP |
| External sheath, color | orange RAL 2003 |
| Single wire, color | black, black, black, black, green/yellow Power wires: black U/ L1, black V/ L2, black W/ L3, black N/ 4, green/yellow |
| brown, violet, black, green Signal wires | |
| blue, yellow, white, orange Data wires | |
| Nominal voltage, cable | 1000 V |
| Test voltage | 4 kV |
| Rated current | 61 A (Power, according to DIN VDE 0298-4 tab. 11/5) |
| 18 A (Signal, according to DIN VDE 0298-4 tab. 11/5) | |
| 3.6 A (Data, according to DIN VDE 0298-4 tab. 11/5) | |
| Smallest bending radius, fixed installation | 107 mm |
| Smallest bending radius, movable installation | 160.5 mm |
| Number of bending cycles | 5000000 |
| Traversing path | 5 m |
| Ambient temperature for fixed installation | -40 °C … 80 °C |
| Ambient temperature for flexible installation | -20 °C … 60 °C |
| UL AWM style | 20234 / 10492 (80°C/1000 V) |
| Special properties | Flexible cable conduit capable |
| Flame resistance | IEC 60332-1-2 |
| Halogen-free | yes |
| Resistance to oil | EN 60811-2-1 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
