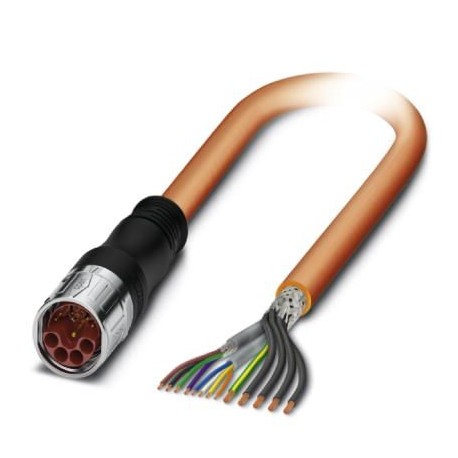

Key Commercial Data
| Orderkey | 1622228 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 2 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 232 (C-2-2017) |
| GTIN | 4055626069920 |
| Weight per Piece (excluding packing) | 1,911.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Connector specifications
| Type | straight plastic-sheathed |
|---|---|
| Housing material | PUR |
| Thread type | M23 |
| Locking type | SPEEDCON locking |
| Degree of protection | IP67, when in locked state |
| IP68, when in locked state | |
| Number of positions | 4+4+4+PE |
| Direction of rotation | Standard |
| Type of contact | Pin |
| Insertion/withdrawal cycles | 100 |
| Max. current | 30 A |
| Voltage | 630 V AC |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
Cable specifications
| Type of cable | HDSL11Y |
|---|---|
| Signal type | CAT5 |
| Transmission speed | 100 Mbps (Data interface) |
| Shielded | yes |
| Cable structure | (5x 2.5 + 4x 0.34/C + 4x 0.5) C |
| Cable structure (AWG) | (14 AWG/ 5 + 22 AWG/ 4c + 20 AWG) C |
| External cable diameter | 14.6 mm ±0.4 mm |
| Outer sheath, material | PUR |
| Material wire insulation | TPE |
| External sheath, color | orange RAL 2003 |
| Single wire, color | Black 1, black 2, black 3, black 4, green/yellow Power wires + PE |
| brown, violet, black 5, green Signal wires | |
| blue, yellow, white, orange Data wires | |
| Nominal voltage, cable | 1000 V (300 V signal) |
| Test voltage | 4 kV (1.5 kV signal) |
| Rated current | 26 A (Power, according to DIN VDE 0298-4 tab. 11/5) |
| 8 A (Signal, according to DIN VDE 0298-4 tab. 11/5) | |
| 3.6 A (Data, according to DIN VDE 0298-4 tab. 11/5) | |
| Smallest bending radius, fixed installation | 73 mm |
| Smallest bending radius, movable installation | 148 mm |
| Number of bending cycles | 1000000 |
| Traversing path | 6 m |
| Acceleration | 30 m/s² |
| Ambient temperature for fixed installation | -40 °C … 80 °C |
| Ambient temperature for flexible installation | -30 °C … 60 °C |
| UL AWM style | 20234 / 10492 (80°C/1000 V) |
| Special properties | Flexible cable conduit capable |
| Flame resistance | IEC 60332-1-2 |
| Halogen-free | According to EN 50267-2-1 |
| Resistance to oil | EN 60811-2-1 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
