Key Commercial Data
| Orderkey | 1620323 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 2 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 231 (C-2-2017) |
| GTIN | 4046356833615 |
| Weight per Piece (excluding packing) | 1,834.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |

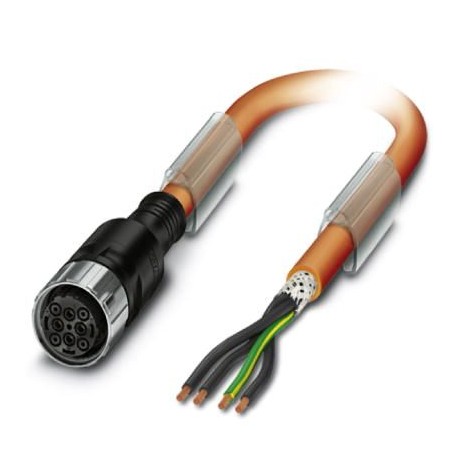

Connector specifications
| Type | straight plastic-sheathed |
|---|---|
| Thread type | M40 |
| Locking type | Screw locking |
| Degree of protection | IP67, when in locked state |
| Number of positions | 4+3+PE |
| Direction of rotation | Standard |
| Type of contact | Socket |
| Insertion/withdrawal cycles | 50 |
| Contact resistance | < 0.3 mΩ |
| Max. current | 70 A |
| Voltage | 630 V |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
| Ambient temperature (operation) | -40 °C … 105 °C |
Cable specifications
| Type of cable | PSLC11Y-J |
|---|---|
| Shielded | yes |
| Cable structure | 4 x 2.5 mm² + 2 x 2 x 1.0 mm² StC |
| External cable diameter | 13.5 mm ±0.4 mm |
| Outer sheath, material | PUR |
| Material wire insulation | TPM |
| External sheath, color | orange RAL 2003 |
| Nominal voltage, cable | 1000 V |
| Test voltage | 4 kV (2 kV signal) |
| Smallest bending radius, movable installation | 135 mm |
| Number of bending cycles | 10000000 |
| Bending radius | 135 mm |
| Traversing path | 6 m |
| Acceleration | 5 m/s² |
| Ambient temperature for fixed installation | -40 °C … 80 °C |
| Ambient temperature for flexible installation | -20 °C … 60 °C |
| Special properties | Flexible cable conduit capable |
| Flame resistance | IEC 332-1 |
| Halogen-free | DIN VDE 0472 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
