Key Commercial Data
| Orderkey | 1625775 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 2 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 226 (C-2-2017) |
| GTIN | 4046356843805 |
| Weight per Piece (excluding packing) | 2.900 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Connector specifications

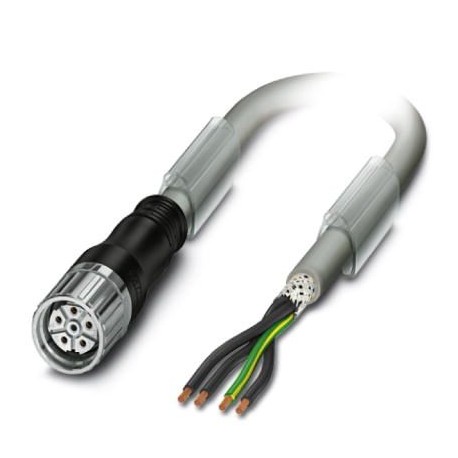

| Type | straight plastic-sheathed |
|---|---|
| Thread type | M23 |
| Locking type | Screw locking |
| Degree of protection | IP67, when in locked state |
| Number of positions | 4+PE |
| Direction of rotation | Standard |
| Type of contact | Socket |
| Insertion/withdrawal cycles | 50 |
| Contact resistance | < 0.3 mΩ |
| Max. current | 30 A |
| Voltage | 630 V |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
| Ambient temperature (operation) | -40 °C … 105 °C |
Cable specifications
| Type of cable | Ölflex Control TM |
|---|---|
| Shielded | no |
| Cable structure | 5G4 |
| Cable structure (AWG) | Ölflex Control TM 5G4 unshielded |
| External cable diameter | 12.6 mm |
| Outer sheath, material | PVC |
| Material wire insulation | PVC |
| External sheath, color | gray RAL 7001 |
| Nominal voltage, cable | 600 V |
| Test voltage | 2 kV |
| Rated current | 34 A |
| Smallest bending radius, fixed installation | 76 mm |
| Ambient temperature for fixed installation | -40 °C … 90 °C |
| Resistance to oil | UL OIL RES I |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
