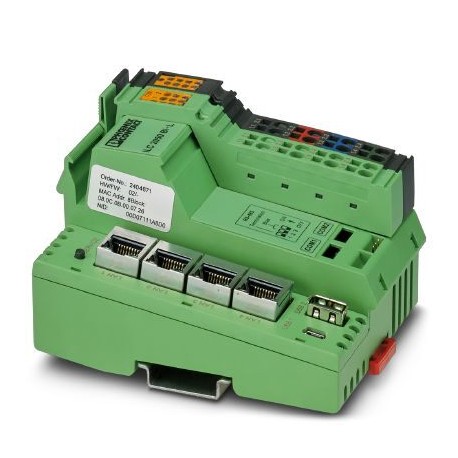

ILC 2050 BI-L 2404671 PHOENIX CONTACT The modular Inline controller for automation applications in buildings..
ILC 2050 BI-L 2404671 PHOENIX CONTACT The modular Inline controller for automation applications in buildings..
The modular Inline controller for automation applications in buildings, infrastructure, and energy for connection with standard automation technology with the Internet of Things (IoT). The controller makes it possible to implement complex systems efficiently.
Liên hệ:
Key Commercial Data
| Orderkey | 2404671 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626933030 |
| Weight per Piece (excluding packing) | 320.000 g |
| Custom tariff number | 85371091 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C … 55 °C |
| Ambient temperature (storage/transport) | -25 °C … 85 °C |
| Permissible humidity (operation) | 0 % … 75 % (according to DIN EN 61131-2, non-condensing, no ice formation) |
| Air pressure (operation) | 70 hPa … 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa … 106 kPa (up to 3000 m above sea level) |
| Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO2) 10 ±0.3 ppm (test duration: 10 days), hydrogen sulfide (H2S) 1 ±0.3 ppm (test duration: 4 days), both at 25°C and with 75% humidity |
Control system
| Engineering tool | Niagara 4 |
|---|---|
| WorkPlace | |
| Programming languages supported | Niagara Framework® |
Data interfaces
| Interface | Ethernet |
|---|---|
| Number | 4 |
| Connection method | RJ45 socket, shielded |
| Transmission speed | 10/100 Mbps |
| Interface | RS-485 |
| Number | 2 |
| Connection method | Spring-cage connection |
| Transmission speed | max. 200 kbps |
| Interface | USB 1.0/USB 2.0 |
| Number | 1 |
| Connection method | USB type A, socket |
| Interface | USB OTG |
| Number | 1 |
| Connection method | Mini-USB |
| Interface | microSD |
| Number | 1 (Top) |
| Connection method | microSD slot |
Power supply
| Typical current consumption | ≤ 170 mA (at nominal voltage without local bus device) |
|---|---|
| Max. current consumption | ≤ 1.5 A |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC … 30 V DC |
Fieldbus function
| Amount of process data | max. 4096 Bit (INTERBUS) |
|---|---|
| Number of supported devices | max. 63 |
| Number of local bus devices that can be connected | max. 63 (observe current consumption) |
| Number of devices with parameter channel | max. 16 (PCP devices are tolerated – however, PCP is not actively supported) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
[email protected]
| [email protected] 4.0 | 27250203 |
|---|---|
| [email protected] 4.1 | 27240601 |
| [email protected] 5.0 | 27242215 |
| [email protected] 5.1 | 27242700 |
| [email protected] 6.0 | 27242200 |
| [email protected] 7.0 | 27242207 |
| [email protected] 8.0 | 27242207 |
| [email protected] 9.0 | 27242207 |
ETIM
| ETIM 2.0 | EC000236 |
|---|---|
| ETIM 3.0 | EC000236 |
| ETIM 4.0 | EC000236 |
| ETIM 5.0 | EC000236 |
| ETIM 6.0 | EC000236 |
| ETIM 7.0 | EC000236 |
