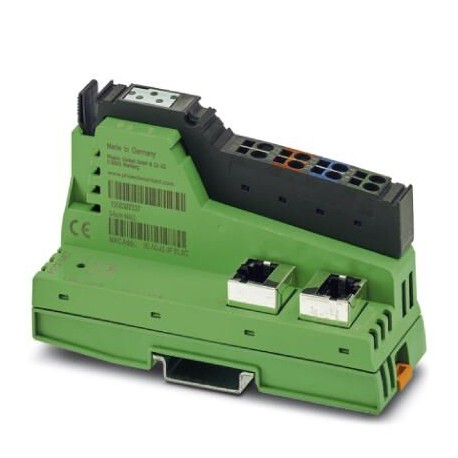

IL PN BK-PAC 2403696 PHOENIX CONTACT Inline, Bus coupler, PROFINET, RJ45 socket, auto negotiation, transmiss..
IL PN BK-PAC 2403696 PHOENIX CONTACT Inline, Bus coupler, PROFINET, RJ45 socket, auto negotiation, transmiss..
Inline, Bus coupler, PROFINET, RJ45 socket, auto negotiation, transmission speed in the local bus: 500 kbps / 2 Mbps, degree of protection: IP20
Liên hệ:
Key Commercial Data
| Orderkey | 2403696 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 104 (C-6-2019) |
| GTIN | 4055626346137 |
| Custom tariff number | 85176200 |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Dimensions
| Dimensional drawing |
 |
|---|---|
| Width | 40 mm |
| Height | 119.4 mm |
| Depth | 71.5 mm |
| Note on dimensions | Housing dimensions |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 55 °C (observe derating) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Permissible humidity (operation) | 10 % … 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % … 95 % (according to DIN EN 61131-2) |
| Air pressure (operation) | 70 kPa … 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa … 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP20 |
General
| Mounting type | DIN rail mounting |
|---|---|
| Color | green |
| Net weight | 168.5 g |
| Note on weight specifications | with connectors |
| Diagnostics messages | Short-circuit / overload of the digital outputs Yes |
| Sensor supply failure Yes | |
| Failure of the actuator supply Yes | |
| Mounting type | DIN rail mounting |
Interfaces
| Designation | PROFINET |
|---|---|
| No. of channels | 2 |
| Connection method | RJ45 socket, auto negotiation |
| Transmission speed | 100 Mbps (acc. to PROFINET standard) |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Designation | Inline local bus |
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps / 2 Mbps (automatic detection, no combined system) |
System limits of the bus coupler
| Amount of process data | max. 2024 Byte (max. 1012 Byte IN – max. 1012 Byte OUT) |
|---|---|
| max. 1012 Byte (Input) | |
| max. 1012 Byte (Output) | |
| Number of supported devices | max. 63 (per station) |
| Number of local bus devices that can be connected | max. 63 |
| Number of devices with parameter channel | max. 16 |
| Number of supported branch terminals with remote bus branch | 4 |
Power supply for module electronics
| Connection method | Spring-cage connection |
|---|---|
| Designation | Bus coupler supply UBC; Communications power UL(7.5 V) and the analog supply UANA(24 V) are generated from the bus coupler supply. |
| Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC … 30 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 138 mA (from UBK) |
| max. 0.91 A DC (from UBK) | |
| Power dissipation | typ. 3 W (entire device) |
Inline potentials
| Designation | Bus coupler supply UBC; Communications power UL(7.5 V) and the analog supply UANA(24 V) are generated from the bus coupler supply. |
|---|---|
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC … 30 V DC (via Inline connector) |
| Current consumption | typ. 51 mA (No local bus devices connected) |
| typ. 138 mA | |
| max. 0.91 A DC | |
| Designation | Communications power (UL) |
| Supply voltage | 7.5 V DC ±5 % |
| Power supply unit | max. 0.8 A DC |
| Power consumption | typ. 3 W (entire device) |
| Designation | Supply of analog modules (UANA) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC … 30 V DC (including all tolerances, including ripple) |
| Power supply unit | max. 0.5 A DC |
| Designation | Main circuit supply (UM) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC … 30 V DC (including all tolerances, including ripple) |
| Power supply unit | max. 8 A DC (sum of UM+ US) |
| Designation | Segment circuit supply (US) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC … 30 V DC (including all tolerances, including ripple) |
| Power supply unit | max. 8 A DC (sum of UM+ US) |
| Power consumption | typ. 3 W (entire device) |
Standards and Regulations
| Mechanical tests | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
|---|---|
| Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Operation: 25g, 11 ms duration, semi-sinusoidal shock impulse | |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 6.0 | 27242600 |
|---|---|
| [email protected] 7.0 | 27242608 |
| [email protected] 8.0 | 27242608 |
| [email protected] 9.0 | 27242608 |
