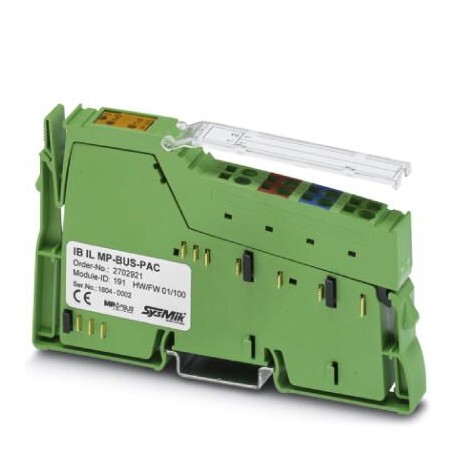

IB IL MP-BUS-PAC 2702921 PHOENIX CONTACT Inline, MP-Bus master terminal for connecting MP-Bus devices, trans..
IB IL MP-BUS-PAC 2702921 PHOENIX CONTACT Inline, MP-Bus master terminal for connecting MP-Bus devices, trans..
Inline, MP-Bus master terminal for connecting MP-Bus devices, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connector and marking field
Liên hệ:
Key Commercial Data
| Orderkey | 2702921 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626745749 |
| Custom tariff number | 85389099 |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Dimensions
| Dimensional drawing |
 |
|---|---|
| Width | 12.2 mm |
| Height | 119.8 mm |
| Depth | 71.5 mm |
| Note on dimensions | Housing dimensions |
Connection data
| Designation | Inline connector |
|---|---|
| Connection method | Spring-cage connection |
| Conductor cross section solid min. | 0.08 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.08 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 28 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C … 85 °C |
| Permissible humidity (operation) | 10 % … 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % … 95 % (non-condensing) |
| Air pressure (operation) | 70 kPa … 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa … 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP20 |
General
| Mounting type | DIN rail |
|---|---|
| Color | green |
| Net weight | 61 g |
| Note on weight specifications | with connector |
Interfaces
| Designation | Inline local bus |
|---|---|
| No. of channels | 2 |
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps |
| Interface | MP-Bus |
| Connection method | Inline connector |
| Note on the connection method | Signal connection: 2-wire, 3-wire with supply voltage |
Inline potentials
| Designation | Communications power (UL) |
|---|---|
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Current consumption | typ. 70 mA |
| max. 90 mA | |
| Power consumption | max. 675 MW |
| typ. 525 mW | |
| Designation | Main circuit supply (UM) |
| Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC … 30 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 8 mA |
| max. 20 mA | |
| Designation | Segment circuit supply (US) |
| Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC … 30 V DC (including all tolerances, including ripple) |
| Current consumption | max. 8 A |
Electrical isolation
| Test section | MP-Bus/7.5 V supply (bus logic) 500 V AC 50 Hz 1 min. |
|---|---|
| MP-Bus/functional ground 500 V AC 50 Hz 1 min. | |
| 7.5 V supply (bus logics) / functional earth ground 500 V AC 50 Hz 1 min. | |
| 24 V supply (UM, US) /functional earth ground 500 V AC 50 Hz 1 min. |
Classifications
