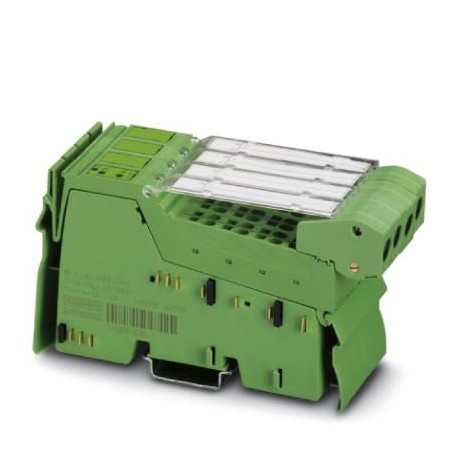

Key Commercial Data
| Orderkey | 2878447 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 160 (C-6-2017) |
| GTIN | 4017918996376 |
| Weight per Piece (excluding packing) | 210.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C … 85 °C |
| Permissible humidity (operation) | 10 % … 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % … 95 % (according to DIN EN 61131-2) |
| Air pressure (operation) | 70 kPa … 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa … 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP20 |
General
| Mounting type | DIN rail |
|---|---|
| Net weight | 210 g |
| Note on weight specifications | with connectors |
| Operating mode | Process data mode with 5 words/1 word PCP |
Interfaces
| Designation | Inline local bus |
|---|---|
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps |
| Transmission physics | Copper |
Inline potentials
| Designation | Communications power (UL) |
|---|---|
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Current consumption | typ. 85 mA |
| max. 100 mA | |
| Designation | Supply of analog modules (UANA) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC … 30 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 13 mA |
| max. 20 mA | |
| Designation | Main circuit supply (UM) |
| Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC … 30 V DC (including all tolerances, including ripple) |
| Current consumption | 0 A |
| max. 200 mA |
