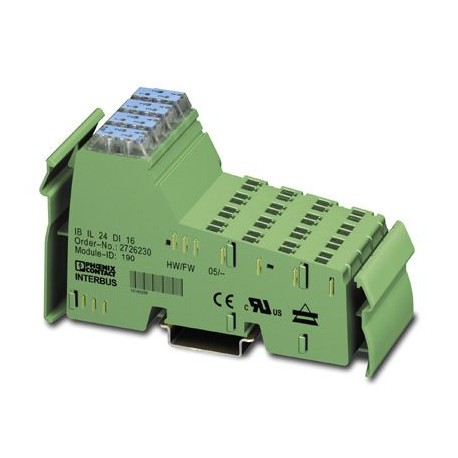

Dimensions
| Dimensional drawing | |
|---|---|
| Width | 48.8 mm |
| Height | 140.5 mm |
| Depth | 71.5 mm |
| Note on dimensions | Housing dimensions |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C … 85 °C |
| Permissible humidity (operation) | 10 % … 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % … 95 % (according to DIN EN 61131-2) |
| Air pressure (operation) | 70 kPa … 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa … 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP20 |
Interfaces
| Designation | Inline local bus |
|---|---|
| No. of channels | 2 |
| Connection method | Inline data jumper |
| Transmission speed | 2 Mbps |
Digital inputs
| Input name | Digital inputs |
|---|---|
| Description of the input | EN 61131-2 type 1 |
| Connection method | Spring-cage connection |
| Connection technology | 3-wire |
| Number of inputs | 16 |
| Typical response time | < 1 ms |
| Type of protection | Short-circuit and overload protection |
| Input voltage | 24 V DC (via voltage jumper) |
| Input voltage range “0” signal | -3 V DC … 5 V DC |
| Input voltage range “1” signal | 15 V DC … 30 V DC |
| Nominal input current at UIN | min. 3 mA (at nominal voltage) |
