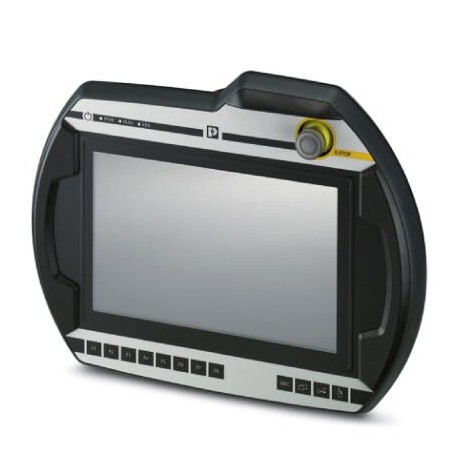

HTP10 1000 1047318 PHOENIX CONTACT Mobile panel with 25.7 cm / 10.1″ TFT-display (analog resistive (polyeste..
HTP10 1000 1047318 PHOENIX CONTACT Mobile panel with 25.7 cm / 10.1″ TFT-display (analog resistive (polyeste..
Mobile panel with 25.7 cm / 10.1″ TFT-display (analog resistive (polyester)), 1280 x 800 pixel(s) (WXGA), Intel
Liên hệ:
Key Commercial Data
| Orderkey | 1047318 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 487 (C-6-2019) |
| GTIN | 4055626644363 |
| Custom tariff number | 84713000 |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Dimensions
| Outer dimensions: width, height, depth | 353 mm x 274 mm x 110 mm (with handle and emergency stop) |
|---|
Display
| Display | 25.7 cm / 10.1″ TFT |
|---|---|
| Screen resolution | 1280 x 800 Pixel(s) (WXGA) |
| Touch technology | analog resistive (polyester) |
| Backlighting | LED |
Computer data
| Processor | Intel®Atom™E3815 1.46 GHz |
|---|---|
| Operating system | Windows®10 IoT Enterprise LTSB 2016 (64-bit), Multi-language |
| User software | Portico |
| RAM | 4 GB DDR3 |
| Mass storage | Flash SSD, 32 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 1x USB 2.0 |
| Slots | 1x SD |
General
| Extras | Cover cap for USB interface |
|---|---|
| Operating buttons | 4x System keys (Software keyboard, switch task Alt+Tab, right mouse button, user-specific function) |
| 8x freely configurable function keys (F1 … F8) | |
| 2x Enable switch (3-stage; 2-channel; integrated in the handle) | |
| 1x Emergency stop (illuminated; 2-circuit wiring) | |
| Mounting type | none |
| Weight | 1850 g |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| Ambient temperature (operation) | 0 °C … 45 °C |
| Ambient temperature (storage/transport) | -25 °C … 70 °C |
| Permissible humidity (operation) | 5 % … 95 % (non-condensing) |
| Vibration (operation) | 1g, Criterion 1, according to IEC 60068-2-6 |
| Shock | 15g, 11 ms, in accordance with EN 61131-2 |
| LABS freedom | LABS zone III (in accordance with VDMA 24364:2018-05) |
Device supply
| Supply voltage range | 19.2 V DC … 30 V DC (according to EN 61131-2) |
|---|---|
| Power supply unit | 24 V DC ±20 % |
Standards and Regulations
| LABS freedom | LABS zone III (in accordance with VDMA 24364:2018-05) |
|---|---|
| Shock | 15g, 11 ms, in accordance with EN 61131-2 |
| Vibration (operation) | 1g, Criterion 1, according to IEC 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 10; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 5.1 | 27242303 |
|---|---|
| [email protected] 6.0 | 27242303 |
| [email protected] 8.0 | 27242303 |
| [email protected] 9.0 | 27330202 |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
