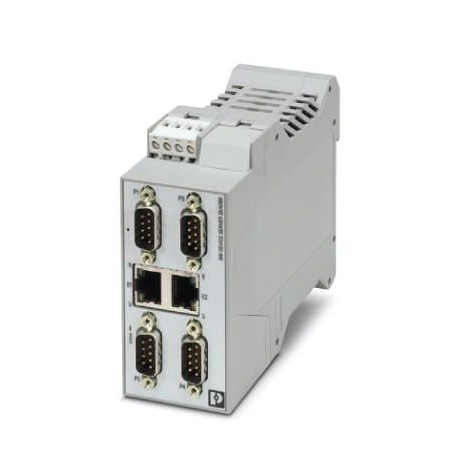

The GW EIP/MODBUS… enables two-way communication between EtherNet/IP™ and Modbus protocols. Includes two RJ45 ports and four D-SUB 9 ports.
Liên hệ:
Key Commercial Data
| Orderkey | 1062388 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626718224 |
| Weight per Piece (excluding packing) | 120.000 g |
| Custom tariff number | 85176200 |
| Country of origin | US (United States) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Permissible humidity (operation) | 10 % … 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % … 95 % (non-condensing) |
| Altitude | < 2000 m |
| Degree of protection | IP20 |
| Noise immunity | EN 61000-6-2:2005 |
General
| Electrical isolation | IEC UL 61010-1 (VCC // Ethernet) |
|---|---|
| Test voltage data interface/data interface | 1.5 kVrms(50 Hz, 1 min.) |
| Test voltage data interface/power supply | 1.5 kVrms |
| 1.5 kVrms(50 Hz, 1 min.) | |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4 |
| Net weight | 250.4 g |
| Housing material | PA 6.6 |
| Color | gray |
| MTBF | 63.5 Years (Telcordia standard, 25°C temperature, 50% stress, Environmental Factor = 1.0) |
| 42.3 Years (Telcordia standard, 40°C temperature, 50% stress, Environmental Factor = 1.5) | |
| Conformance | CE-compliant |
| UL, USA | UL 61010-1 |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D T4A |
Power supply
| Supply voltage range | 10.8 V DC … 30 V DC (via pluggable COMBICON screw terminal block) |
|---|---|
| Max. current consumption | 120 mA (24 V DC) |
| Typical current consumption | 110 mA (24 V DC) |
| Conductor cross section flexible max. | 2.50 mm² |
| Conductor cross section flexible min. | 0.20 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
Serial interface
| Interface 1 | EtherNet/IP™, MODBUS TCP |
|---|---|
| Interface | Ethernet |
| No. of ports | 2 |
| Connection method | RJ45 socket, shielded |
| Transmission length | ≤ 100 m (shielded twisted pair) |
| Protocols supported | EtherNet/IP, MODBUS ASCII/RTU/TCP |
| Auxiliary protocols | ARP, DHCP (Client), PING |
| Serial transmission speed | 10/100 Mbps, auto negotiation |
| Interface | RS-232 |
| Number of connections | 4 |
| Connection method | D-SUB 9 plug |
| File format/coding | 5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity |
| Transmission length | 15 m |
| Pin assignment | |
| Data flow control/protocols | Software handshake, Xon/Xoff or hardware handshake RTS/CTS |
| Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps |
| Interface | RS-422 |
| Number of connections | 4 |
| Connection method | D-SUB 9 plug |
| File format/coding | 5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity |
| Transmission length | ≤ 1200 m |
| Termination resistor | 120 Ω (configurable) |
| Pin assignment | |
| Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps |
| Interface | RS-485 |
| Number of connections | 4 |
| Connection method | D-SUB 9 plug |
| File format/coding | 5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity |
| Termination resistor | 120 Ω (configurable) |
| Pin assignment | |
| Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Type of test | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
| Shock in acc. with EN 60068-2-27/IEC 60068-2-27 | |
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2:2005 |
| Standards/regulations | EN 55022, EN 55024 |
| Conformance | CE-compliant |
| UL, USA | UL 61010-1 |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D T4A |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
| ATEX | DEMKO 18ATEX 2026X: II 3 G Ex ec IIC T4 Gc |
| IECEx | IECEx UL 18.0023X Ex ec IIC T4 Gc |
Classifications
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Permissible humidity (operation) | 10 % … 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % … 95 % (non-condensing) |
| Altitude | < 2000 m |
| Degree of protection | IP20 |
| Noise immunity | EN 61000-6-2:2005 |
