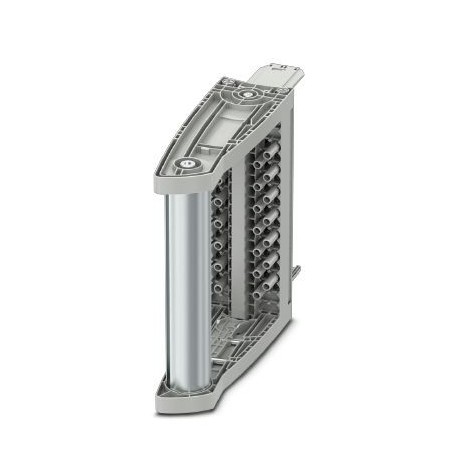

FTP-3F/14 4U 1029268 PHOENIX CONTACT Test plug, nom. voltage: 400 V, nominal current: 20 A, color: gray

FTP-3F/14 4U 1029268 PHOENIX CONTACT Test plug, nom. voltage: 400 V, nominal current: 20 A, color: gray

FTP-3F/14 4U 1029268 PHOENIX CONTACT Test plug, nom. voltage: 400 V, nominal current: 20 A, color: gray

Test plug, nom. voltage: 400 V, nominal current: 20 A, color: gray

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 1029268 Danh mục: Enclosures connectivity Thẻ: 1029268, FTP-3F/14 4U, PHOENIX_CONTACT

Mô tả

Key Commercial Data

Orderkey	1029268
Packing unit	1
Catalog page	Page 651 (C-1-2019)
GTIN	4055626531243
Custom tariff number	85366990

Drawings
Connection data
Standards and Regulations
Classifications

General
Mounting
Environmental Product Compliance

Drawings


Circuit diagram

General

Nominal cross section	4 mm²
Color	gray
Insulating material	PC
Flammability rating according to UL 94	V0
Maximum load current	20 A
Nominal current I_N	20 A
Nominal voltage U_N	400 V

Connection data

Conductor cross section flexible min.	0.5 mm²
Conductor cross section flexible max.	2.5 mm²
Min. AWG conductor cross section, flexible	24
Max. AWG conductor cross section, flexible	10

Mounting

Min. tightening torque of the test socket screw:	0.5 Nm
Max. tightening torque of the test socket screw:	0.6 Nm

Standards and Regulations

Flammability rating according to UL 94	V0

Environmental Product Compliance

REACh SVHC	Lead 7439-92-1

Classifications

[email protected]

[email protected] 8.0	27440313
[email protected] 9.0	27440313

ETIM

ETIM 5.0	EC002255
ETIM 6.0	EC002255
ETIM 7.0	EC002255

Drawings
Connection data
Standards and Regulations
Classifications

General
Mounting
Environmental Product Compliance

Drawings


Circuit diagram

Connection data

Conductor cross section flexible min.	0.5 mm²
Conductor cross section flexible max.	2.5 mm²
Min. AWG conductor cross section, flexible	24
Max. AWG conductor cross section, flexible	10
