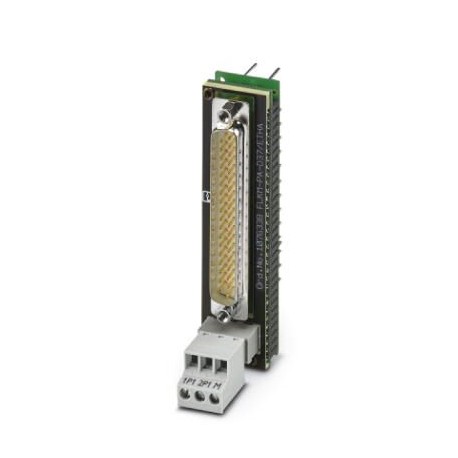

Key Commercial Data
| Orderkey | 1076338 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 512 (C-5-2019) |
| GTIN | 4055626783543 |
| Weight per Piece (excluding packing) | 80.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Note
| Note | Once plugged in, the front adapter and terminal block form a single unit that can no longer be separated. |
|---|---|
| No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC). | |
| Against adjacent modules in the support rail direction at least one functional insulation on the output-side is complied with. If the application has higher requirements on the insulation (basic insulation or reinforced insulation), then these must be realized through suitable measures (e. g. partition plates). |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
| Maximum altitude | ≤ 2000 m |
| Degree of protection | IP00 |
| ≥ IP54 (Installation location) |
General
| Max. permissible operating voltage | 25 V AC |
|---|---|
| 60 V DC | |
| Max. permissible current | 1 A (per path) |
| 2 A (per path 17 and – 18 with operating voltage supply via D-SUB male strip) | |
| 10 A (With operating voltage feed over screw connection) | |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Nominal operating mode | 100% operating factor |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
|---|---|
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV (Functional insulation) |
| Pollution degree | 2 |
| Overvoltage category | II |
Connection data
| Connection name | Controller level |
|---|---|
| Connection method | Plug connection |
| Number of positions | 36 |
Connection data 2
| Connection name | Field level |
|---|---|
| Connection method | D-SUB pin strip |
| Number of connections | 1 |
| Number of positions | 37 |
Connection data 3
| Connection name | Supply |
|---|---|
| Connection method | Screw connection |
| Number of connections | 1 |
| Number of positions | 3 |
| Conductor cross section solid | 0.34 mm² … 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 12 |
| pluggable | Yes |
Supported controller
| Controller | SIEMENS ET200SP HA |
|---|---|
| – suitable I/O card | 6DL1131-6BH00-0PH1 |
| 6DL1131-6TH00-0PH1 | |
| 6DL1131-6BL00-0PH1 | |
| 6DL1132-6BH00-0PH1 | |
| 6DL1132-6BL00-0PH1 | |
| 6DL1134-6TH00-0PH1 | |
| 6DL1134-6JH00-0PH1 | |
| 6DL1135-6TF00-0PH1 | |
| – suitable terminal block | 6DL1193-6TP00-0BH1 |
| 6DL1193-6TP00-0DH1 | |
| 6DL1193-6TP00-0BM1 | |
| 6DL1193-6TP00-0DM1 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
