FLKM-2FLK14/KDS3-MT/PPA/SC034 2902957 PHOENIX CONTACT VARIOFACE termination board, for Siemens SIMATIC® S7-3..
FLKM-2FLK14/KDS3-MT/PPA/SC034 2902957 PHOENIX CONTACT VARIOFACE termination board, for Siemens SIMATIC® S7-3..

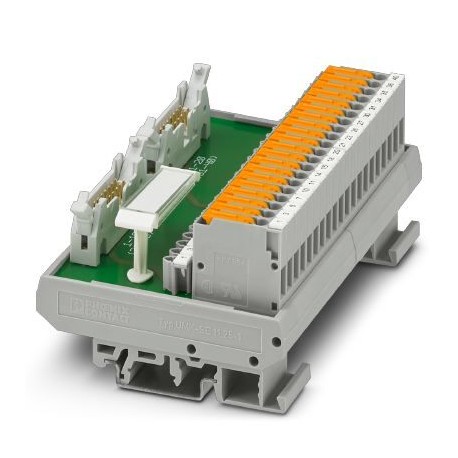

VARIOFACE termination board, for Siemens SIMATIC® S7-300, max. 16 channels with SIMATIC®-specific marking
Liên hệ:
VARIOFACE termination board, for Siemens SIMATIC® S7-300, max. 16 channels with SIMATIC®-specific marking
Key Commercial Data
| Orderkey | 2902957 |
|---|---|
| Packing unit | 1 |
| GTIN | 4046356701266 |
| Custom tariff number | 85369010 |
Dimensions
| Width | 112.5 mm |
|---|---|
| Height | 77 mm |
| Depth | 52.5 mm |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|
General
| Nominal voltage UN | 60 V DC |
|---|---|
| Max. perm. current (per branch) | 1 A |
| Max. permissible current (all branches) | 3 A |
| Mounting position | any |
Connection data
| Connection name | Field level |
|---|---|
| Connection method | Screw connection with disconnect knife |
| Number of positions | 20 |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 12 |
Connection data 2
| Connection name | Controller level |
|---|---|
| Connection method | IDC/FLK socket strip |
| Number of connections | 2 |
| Number of positions | 14 |
