Key Commercial Data
| Orderkey | 2299136 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 550 (C-5-2017) |
| GTIN | 4017918832193 |
| Weight per Piece (excluding packing) | 571.100 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Nominal voltage UN | < 50 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 1 A |
| Max. conductor resistance | 0.16 Ω/m |
| Length of cable | 3 m |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Conductor construction: Number of litz wires: | 7 |
| Single wire, material | Cu tin-plated |
| External diameter | 11 mm |
| Cable, preassembly | Insulation displacement, IEC 60352-4/DIN EN 60352-4 |
| Shielding | yes |
| Tinned copper-braided shield, approx. 85% covering |
Environmental conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
| Flame resistance | IEC 60332-3-22 |

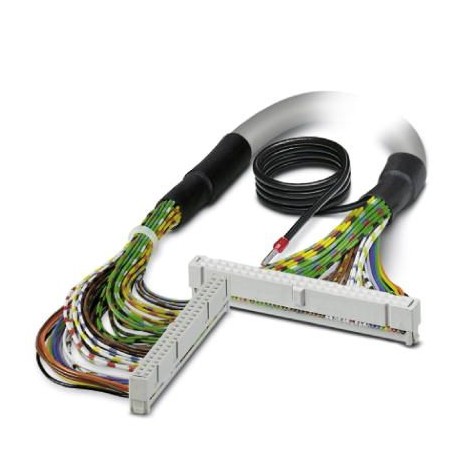

Connector 1
| Connection name | Field level |
|---|---|
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 50 |
| Note | The braided shield is routed to a separate cable end. |
| The separate cable end is approximately 0.5 m long (H05V-K 1 mm², black) | |
| Pitch | 2.54 mm |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 50 |
| Pitch | 2.54 mm |
Supported controller
| Controller | SIEMENS S7-300 / ET 200 M |
|---|---|
| – suitable I/O card | CPU 313C-2DP |
| CPU 314C-2PtP | |
| 6ES7 321-1BL00-0AA0 | |
| 6ES7 322-1BL00-0AA0 | |
| 6ES7 323-1BL00-0AA0 | |
| 6ES7 331-7NF00-0AB0 | |
| 6ES7 331-7PF01-0AB0 | |
| 6ES7 331-7PF11-0AB0 | |
| 6ES7 350-2AH01-0AE0 | |
| 6ES7 357-4AH01-0AE0 | |
| CPU 314C-2DP | |
| 6ES7 332-5HF00-0AB0 | |
| 6ES7 331-7NF10-0AB0 | |
| 6ES7 331-1KF01-0AB0 | |
| CPU 313C | |
| CPU 313C-2PtP | |
| Controller | SIEMENS S7-400 |
| – suitable I/O card | 6ES7 421-1BL01-0AA0 |
| 6ES7 421-7BH01-0AB0 | |
| 6ES7 421-7DH00-0AA0 | |
| 6ES7 422-1BL00-0AA0 | |
| 6ES7 422-7BL00-0AB0 | |
| 6ES7 431-0HH0-0AB0 | |
| 6ES7 431-1KF00-0AB0 | |
| 6ES7 431-1KF10-0AB0 | |
| 6ES7 431-1KF20-0AB0 | |
| 6ES7 431-7KF00-0AB0 | |
| 6ES7 431-7KF10-0AB0 | |
| 6ES7 431-7QH00-0AB0 | |
| 6ES7 432-1HF00-0AB0 | |
| Controller | Schneider Electric Modicon TSX QUANTUM |
| – suitable I/O card | DDI 353 |
| DDI 841 | |
| DDI 853 | |
| DAI 340 | |
| DAI 353 | |
| DAI 440 | |
| DAI 453 | |
| DDO 353 | |
| DDM 390 | |
| ACI 030 | |
| ACI 040 | |
| ATI 030 | |
| ARI 030 | |
| AVI 030 | |
| ACO 020 | |
| ACO 130 | |
| AVO 020 | |
| EHC 105 | |
| EHC 202 | |
| Controller | ALLEN-BRADLEY ControlLogix |
| – suitable I/O card | 1756-IA16I |
| 1756-IB16D | |
| 1756-IB16I | |
| 1756-IB32 | |
| 1756-IH16I | |
| 1756-OB32 | |
| 1756-IF8 | |
| 1756-IF16 | |
| 1756-HSC | |
| 1756-M02AE | |
| Controller | ALLEN-BRADLEY PLC 5 |
| – suitable I/O card | 1771 IBN |
| 1771 OBN | |
| Controller | HONEYWELL Experion PKS C200 |
| – suitable I/O card | TC-IDK 161 |
| TC-IDX 161 | |
| TC-IDJ 161 | |
| TC-IDD 321 | |
| TC-ODD 321 | |
| TC-IAH 161 | |
| Controller | ALLEN-BRADLEY SLC 500 |
| – suitable I/O card | 1746 OA16 |
| 1746 OW16 |
