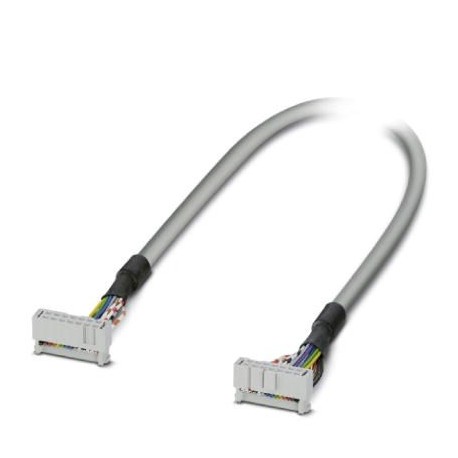

Key Commercial Data
| Orderkey | 2288901 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 550 (C-5-2017) |
| GTIN | 4017918057299 |
| Weight per Piece (excluding packing) | 32.500 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Nominal voltage UN | < 50 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 1 A |
| Max. conductor resistance | 0.16 Ω/m |
| Length of cable | 0.5 m |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Conductor construction: Number of litz wires: | 7 |
| Single wire, material | Cu tin-plated |
| External diameter | 6.4 mm |
| Cable, preassembly | Insulation displacement, IEC 60352-4/DIN EN 60352-4 |
| Shielding | no |
| Outer sheath, material | PVC |
| External sheath, color | gray RAL 7035 |
Environmental conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
| Flame resistance | IEC 60332-1 |
| DIN VDE 0482 Part 332-1 | |
| Resistance to oil | DIN VDE 0472 Part 803, test type B |
| Gasoline resistance | against occasional splashes |
Connector 1
| Connection name | Field level |
|---|---|
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 14 |
| Pitch | 2.54 mm |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 14 |
| Pitch | 2.54 mm |
Supported controller
| Controller | GE-FANUC 90-30 |
|---|---|
| – suitable I/O card | IC693 ALG220 |
| IC693 ALG221 | |
| IC693 ALG222 | |
| IC693 ALG223 | |
| IC693 ALG390 | |
| IC693 ALG391 | |
| IC693 ALG392 | |
| IC693 ALG442 | |
| IC693 MDL241 | |
| IC693 MDL634 | |
| IC693 MDL645 | |
| IC693 MDL646 | |
| IC693 MDL732 | |
| IC693 MDL733 | |
| IC693 MDL740 | |
| IC693 MDL741 | |
| IC693 MDL742 | |
| Controller | SIEMENS S7-300 / ET 200 M |
| – suitable I/O card | CPU 312C |
| CPU 313C | |
| CPU 313C-2DP | |
| CPU 313C-2PtP | |
| CPU 314C-2DP | |
| CPU 314C-2PtP | |
| 6ES7 321-1BH02-0AA0 | |
| 6ES7 321-1BH10-0AA0 | |
| 6ES7 321-1BH50-0AA0 | |
| 6ES7 321-1BL00-0AA0 | |
| 6ES7 321-7BH01-0AB0 | |
| 6ES7 322-1BH01-0AA0 | |
| 6ES7 322-1BH10-0AA0 | |
| 6ES7 322-1BL00-0AA0 | |
| 6ES7 322-8BF00-0AB0 | |
| 6ES7 322-8BH01-0AB0 | |
| 6ES7 323-1BH01-0AA0 | |
| 6ES7 323-1BL00-0AA0 | |
| 6ES7 331-7HF01-0AB0 | |
| 6ES7 331-7KB02-0AB0 | |
| 6ES7 331-7KF02-0AB0 | |
| 6ES7 331-7NF00-0AB0 | |
| 6ES7 331-7PF01-0AB0 | |
| 6ES7 331-7PF11-0AB0 | |
| 6ES7 332-5HD01-0AB0 | |
| 6ES7 332-5HB01-0AB0 | |
| 6ES7 332-7ND02-0AB0 | |
| 6ES7 332-8TF01-0AB0 | |
| 6ES7 334-0CE01-0AA0 | |
| 6ES7 334-0KE00-0AB0 | |
| 6ES7 335-7HG01-0AB0 | |
| 6ES7 336-4GE00-0AB0 | |
| 6ES7 338-4BC01-0AB0 | |
| 6ES7 350-1AH03-0AE0 | |
| 6ES7 350-2AH01-0AE0 | |
| 6ES7 351-1AH01-0AE0 | |
| 6ES7 352-1AH02-0AE0 | |
| 6ES7 353-1AH01-0AE0 | |
| 6ES7 354-1AH01-0AE0 | |
| 6ES7 355-0VH10-0AE0 | |
| 6ES7 355-1VH10-0AE0 | |
| 6ES7 357-4AH01-0AE0 | |
| Controller | ALLEN-BRADLEY ControlLogix |
| – suitable I/O card | 1756-IN16 |
| 1756-IA8D | |
| 1756-IA16 | |
| 1756-IB16 | |
| 1756-IC16 | |
| 1756-OB16E | |
| 1756-IF6I | |
| 1756-IR6I | |
| 1756-IT6I | |
| 1756-OF4 | |
| 1756-OF6CI | |
| 1756-OF8 | |
| 1756-PLS | |
| Controller | ALLEN-BRADLEY SLC 500 |
| – suitable I/O card | 1746 OB16 |
| 1746 OV16 | |
| 1746 OG16 | |
| 1746 IA16 | |
| 1746 IB16 | |
| 1746 ITB16 | |
| 1746 IN16 | |
| 1746 IV16 | |
| 1746 ITV16 | |
| 1746 IG16 | |
| Controller | HONEYWELL Experion PKS C200 |
| – suitable I/O card | TC-IDX 081 |
| TC-IDA 161 | |
| TC-IAH 061 | |
| TC-IXR 061 | |
| TC-IXL 061 | |
| TC-OAH 061 | |
| TC-OAV 061 | |
| TC-OAV 081 | |
| Controller | Schneider Electric Modicon TSX QUANTUM |
| – suitable I/O card | DDI 353 |
| DDI 853 | |
| DAI 353 | |
| DAI 453 | |
| DDO 353 |
