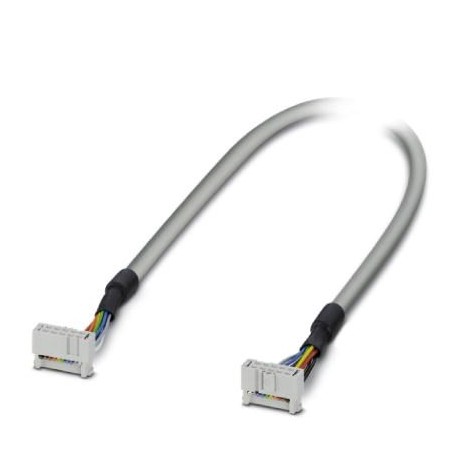

Key Commercial Data
| Orderkey | 2299233 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 588 (C-5-2017) |
| GTIN | 4017918885960 |
| Weight per Piece (excluding packing) | 105.570 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Nominal voltage UN | < 50 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 1 A |
| Max. conductor resistance | 0.16 Ω/m |
| Length of cable | 2 m |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Conductor construction: Number of litz wires: | 7 |
| Single wire, material | Cu tin-plated |
| External diameter | 6 mm |
| Cable, preassembly | Insulation displacement, IEC 60352-4/DIN EN 60352-4 |
| Shielding | no |
| Outer sheath, material | PVC |
| External sheath, color | gray RAL 7035 |
Environmental conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
| Flame resistance | IEC 60332-1 |
| DIN VDE 0482 Part 332-1 | |
| Resistance to oil | DIN VDE 0472 Part 803, test type B |
| Gasoline resistance | against occasional splashes |
Connector 1
| Connection name | Field level |
|---|---|
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 10 |
| Pitch | 2.54 mm |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 10 |
| Pitch | 2.54 mm |
