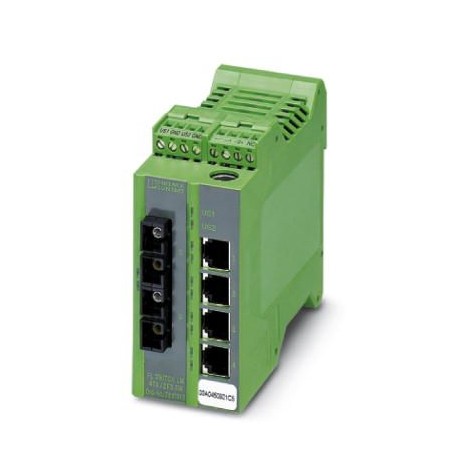

Key Commercial Data
| Orderkey | 2832658 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 298 (C-8-2015) |
| GTIN | 4046356101127 |
| Weight per Piece (excluding packing) | 230.000 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -40 °C … 70 °C |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Permissible humidity (operation) | 30 % … 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 30 % … 95 % (non-condensing) |
| Air pressure (operation) | 80 kPa … 108 kPa (2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa … 108 kPa (3000 m above sea level) |
Interfaces
| Interface 1 | Ethernet (RJ45) |
|---|---|
| No. of ports | 4 (RJ45 ports) |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission physics | Copper |
| Transmission speed | 10/100 Mbps |
| Transmission length | 100 m (per segment) |
| Interface 2 | Ethernet FO |
| No. of ports | 2 (SC multi-mode) |
| Transmission physics | multi-mode fiberglass |
| Transmission speed | 100 Mbps (full duplex) |
| Transmission length | 8000 m (fiberglass with F-G 62.5/125 0.7 dB/km F1000) |
| 6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200) | |
| 3000 m (fiberglass with F-G 62.5/125 2.6 dB/km F600) | |
| 2800 m (fiberglass with F-G 50/125 1.6 dB/km F800) | |
| Wavelength | 1300 nm |
| Interface 5 | Serial (RS-232) |
| Connection method | RS-232-C, 6-pos. MINI-DIN socket (PS/2) |
Function
| Basic functions | Store-and-forward switch complies with IEEE 802.3, 2 priority classes according to IEEE 802.1p, TCP/IP protocol, BootP-compatible, port mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), DHCP server, PTCP filter |
|---|---|
| Management | Web-based management (HTTP) |
| SNMP v1/v2 | |
| Serial interface (V.24) | |
| Diagnostic functions | 1:1-Portmirroring |
| Filter functions | Quality of Service |
| VLAN (up to 8 VLANs) | |
| IGMP Query | |
| Auto-Query-Port | |
| Extended Multicast Filtering | |
| Redundancy | STP (Spanning Tree Protocol) |
| RSTP (Rapid Spanning Tree Protocol) | |
| FRD (Fast Ring Detection) | |
| Large Tree Support | |
| Supported browsers | Internet Explorer 5.5 or higher |
| PROFINET conformance class | Conformance-Class A |
| Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link/Activity and Speed) |
| Signal contact control voltage | 24 V (typical) |
| Signal contact control current | 100 mA |
