FL SWITCH IRT IP 4TX 2700694 PHOENIX CONTACT Ethernet Switch, with four push-pull 10/100 Mbps RJ45 ports for..
FL SWITCH IRT IP 4TX 2700694 PHOENIX CONTACT Ethernet Switch, with four push-pull 10/100 Mbps RJ45 ports for..

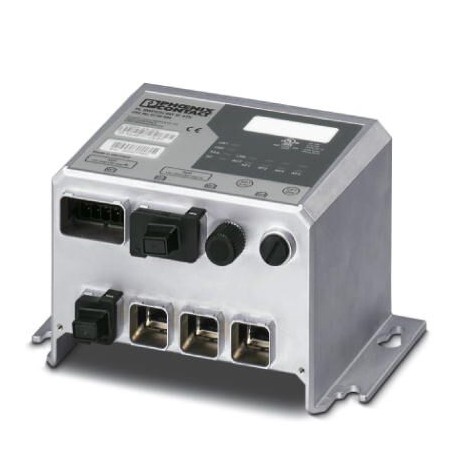

Ethernet Switch, with four push-pull 10/100 Mbps RJ45 ports for PROFINET RT/IRT, in degree of protection IP67
Liên hệ:
Key Commercial Data
| Orderkey | 2700694 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626740171 |
| Custom tariff number | 85176200 |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Ambient temperature (operation) | -25 °C … 60 °C |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Permissible humidity (operation) | 5 % … 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % … 95 % (non-condensing) |
| Air pressure (operation) | 86 kPa … 108 kPa (2000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa … 108 kPa (3500 m above sea level) |
Interfaces
| Interface | Ethernet |
|---|---|
| No. of ports | 4 (RJ45 ports) |
| Transmission physics | Copper |
| Transmission speed | 10/100 Mbps |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Supply voltage, data transmission, error, link, activity |
Function
| Basic functions | Cut-through/store-and-forward switch complies with IEEE 802.3 2 priority classes in accordance with IEEE802.1 P, TCP/IP protocol, DCP capable, integrated web server function, PROFINET device. |
|---|---|
| Redundancy | MRP (Media Redundancy Protocol) |
| Supported browsers | Internet Explorer 5.5 or higher |
| PROFINET device function | PROFINET device |
| PROFINET specification | PROFINET-IO RT/IRT, Spec. 2.x |
| PROFINET conformance class | Conformance-Class C |
| Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and FO status), and BF (Bus Fail) |
| Signal contact control voltage | 24 V |
Network expansion parameters
| Cascading depth | Line and star structure: As desired |
|---|---|
| Maximum conductor length (twisted pair) | 100 m |
Supply voltage
| Supply voltage | 24 V DC (redundant) |
|---|---|
| Residual ripple | 3.6 VPP(within the permitted voltage range) |
| Supply voltage range | 18.5 V DC … 30.2 V DC |
| Typical current consumption | 165 mA (at US= 24 V DC) |
| Max. current consumption | 165 mA |
| Current consumption | 165 mA (at 24 V DC) |
General
| Mounting type | Wall mounting |
|---|---|
| Type AX | Stand-alone |
| Net weight | 2100 g |
| Housing material | Zinc die-cast, surface bronzed and nickel-plated |
Connection data
| Connection method | Screw connection |
|---|---|
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Stripping length | 7 mm |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Type of test | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Test result | Operation: 30g, 3 x in each space direction |
| Type of test | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 | |
| Test result | Operation/Storage/Transport: 5g, 150 Hz, Criterion 3 |
| Type of test | Free fall in acc. with IEC 60068-2-32 |
| Test result | 0.5 m |
| Type of test | Vibration resistance according to IEC 61373, EN 61373 |
| Test result | Category 1, Class B |
| Vibration (storage/transport) | 5g, 10 Hz … 150 Hz, in accordance with IEC 60068-2-6 |
| Vibration (operation) | in accordance with IEC 60068-2-6: 5g, 10 Hz … 150 Hz |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 10.0.1 | 19170401 |
|---|---|
| [email protected] 8.0 | 19170106 |
| [email protected] 9.0 | 19170106 |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
