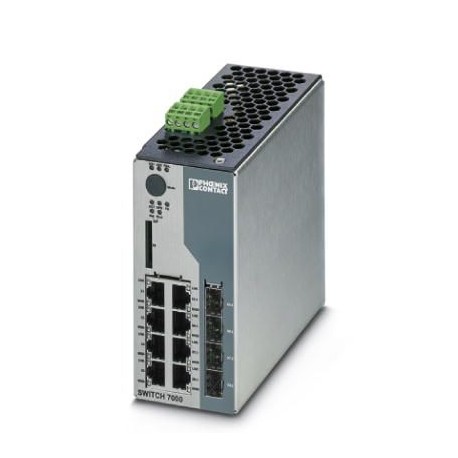

Key Commercial Data
| Orderkey | 2701553 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 419 (C-6-2017) |
| GTIN | 4046356766784 |
| Weight per Piece (excluding packing) | 1,010.000 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -40 °C … 70 °C |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Permissible humidity (operation) | 10 % … 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % … 95 % (non-condensing) |
| Air pressure (operation) | 86 kPa … 108 kPa (1500 m above sea level) |
| Air pressure (storage/transport) | 66 kPa … 108 kPa (3500 m above sea level) |
Interfaces
| Interface 1 | Ethernet (RJ45) |
|---|---|
| No. of ports | 4 (RJ45 ports) |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission physics | Copper |
| Transmission speed | 10/100 Mbps |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Data receive, link status |
| Interface 2 | Ethernet (combo) |
| No. of ports | 4 (Combo ports) |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission physics | Depending on the SFP module |
| Transmission speed | 10/100/1000 Mbps (full duplex) |
| Transmission length | up to 80 km (Depending on the fiber/SFP module used) |
| Signal LEDs | Data receive, link status |
Function
| Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
|---|---|
| Management | Web-based management (HTTP/HTTPS) |
| SNMPv1/v2/v3 | |
| Diagnostic functions | Remanente Event-Table |
| RMON History | |
| N:1-Portmirroring | |
| LLDP (Link Layer Discovery Protocol) | |
| SNMP-Traps | |
| ACD (Address Conflict Detection) | |
| Filter functions | Quality of Service (8 priority classes) |
| Port-Priorisierung | |
| VLAN (up to 32 VLANs) | |
| IGMP Snooping (512 groups) | |
| IGMP Query | |
| Auto-Query-Port | |
| Extended Multicast Filtering | |
| Static Multicast Filtering (32 groups) | |
| Link Aggregation (up to 4 trunks) | |
| Redundancy | DLR (Device Level Ring) |
| RSTP (Rapid Spanning Tree Protocol) | |
| FRD (Fast Ring Detection) | |
| Large Tree Support | |
| Additional functions | MAC-based Port Security |
| MAC address table | 16k |
| IP parameterization | DHCP-Client |
| DHCP Option 82 (Relay Agent) | |
| DHCP server (pool-based, port-based) | |
| BootP | |
| PROFINET device function | Fast Startup |
| PROFINET conformance class | Conformance-Class A |
| EtherNet/IP™ supported protocols | Common Industrial Protocol (CIP) |
| Time synchronization | PTP 1588 (Transparent clock on the DLR ports) |
| Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) EtherNet/IP™ status LED: Net, Mod |
| Signal contact control voltage | 24 V DC (typical) |
| Signal contact control current | 1 A (maximum) |
