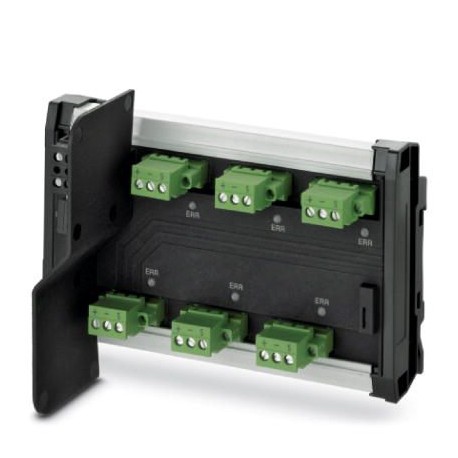

Key Commercial Data
| Orderkey | 2316307 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 514 (C-6-2017) |
| GTIN | 4046356883580 |
| Weight per Piece (excluding packing) | 323.500 g |
| Custom tariff number | 85369095 |
| Country of origin | US (United States) |
Dimensions
| Dimensional drawing | |
|---|---|
| Caption | FB-6SP dimensions |
| Width | 148.2 mm |
| Height | 112.5 mm |
| Depth | 83.5 mm |
Ambient conditions
| Ambient temperature (operation) | -50 °C … 90 °C |
|---|---|
| Ambient temperature (storage/transport) | -50 °C … 90 °C |
| Permissible humidity (operation) | 5 % … 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % … 95 % (non-condensing) |
| Altitude | 2000 m |
| Degree of protection | IP20 |
General
| Mounting position | On horizontal and vertical DIN rail NS 35 in acc. with EN 60715 |
|---|---|
| Net weight | 323.5 g |
| MTTF | 1256 Years (25 degrees C) |
| Conformance | CE-compliant, additionally EN 61326 |
| UL, USA | ANSI/UL 61010-1 |
| Fieldbus Foundation | FF-846 |
Power supply
| Supply voltage range | 10.5 V DC … 32 V DC (input on trunk line side) |
|---|---|
| Typical current consumption | 4.8 mA |
| Conductor cross section flexible max. | 0.20 mm² |
| Conductor cross section flexible min. | 2.50 mm² |
| Conductor cross section solid max. | 0.20 mm² |
| Conductor cross section solid min. | 2.50 mm² |
| Max. AWG conductor cross section, flexible | 12 |
| Min. AWG conductor cross section, flexible | 24 |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
Serial interface
| Interface 1 | Foundation Fieldbus and PROFIBUS PA Segment |
|---|---|
| No. of ports | 6 |
| Connection method | Pluggable COMBICON screw connection for each spur |
| Termination resistor | 100 Ω (external removable plug) |
| 100 Ω, external removable plug included | |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Output nominal voltage | ≤ 32 V (each spur) |
| Output current | 38 mA |
| Inductance Li | 4 µH |
| Max. output voltage Uo | Uin(spur) |
