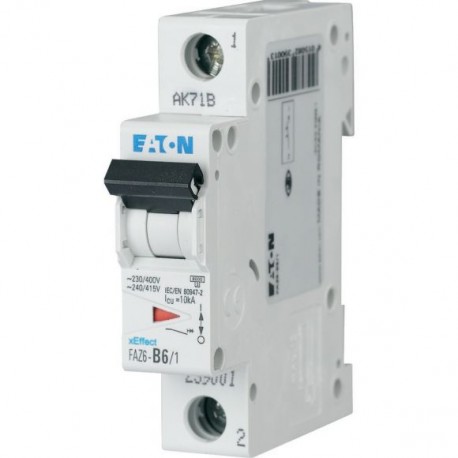

High-quality miniature circuit breaker for industrial applications and residential applications, contact position indicator red – green, guide for secure terminal connection, tri-stable slide catch – enables removal from existing busbar system, comprehensive range of accessories suitable for subsequent installation, rated currents up to 63 A, tripping characteristics B, C, D
General specifications
Product name
Eaton Moeller series xEffect – FAZ6 MCB
Part no.
FAZ6-C10/1
EAN
4015082390358
Product Length/Depth
85 millimetre
Product height
73 millimetre
Product width
17.7 millimetre
Product weight
0.12 kilogram
Compliances
RoHS conform
Product Tradename
xEffect – FAZ6
Product Type
MCB
Product Sub Type
None
Globally Marketable
Yes
Delivery program
Number of poles (total)
1
Number of poles (protected)
1
Release characteristic
C
Amperage Rating
10 A
Technical Data – Electrical
Voltage type
AC
Rated operational voltage (Ue) – max
230 V
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV
Frequency rating – min
50 Hz
Frequency rating – max
60 Hz
Rated short-circuit breaking capacity (EN 60898) at 230 V
6 kA
Rated short-circuit breaking capacity (EN 60898) at 400 V
6 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 230 V
10 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 400 V
10 kA
Overvoltage category
III
Pollution degree
2
Technical Data – Mechanical
Width in number of modular spacings
1
Built-in depth
70.5 mm
Degree of protection
IP20
Connectable conductor cross section (solid-core) – min
1 mm²
Connectable conductor cross section (solid-core) – max
25 mm²
Connectable conductor cross section (multi-wired) – min
1 mm²
Connectable conductor cross section (multi-wired) – max
25 mm²
Design verification as per IEC/EN 61439 – technical data
Rated operational current for specified heat dissipation (In)
10 A
Equipment heat dissipation, current-dependent
1.5 W
Ambient operating temperature – min
-25 °C
Ambient operating temperature – max
75 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard’s requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard’s requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard’s requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard’s requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard’s requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard’s requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard’s requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder’s responsibility.
10.8 Connections for external conductors
Is the panel builder’s responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder’s responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder’s responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder’s responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Current limiting class
3
Features
Additional equipment possible
Product name
Eaton Moeller series xEffect – FAZ6 MCB
Eaton Moeller series xEffect – FAZ6 MCB
FAZ6-C10/1
4015082390358
Product Length/Depth
85 millimetre
85 millimetre
73 millimetre
17.7 millimetre
0.12 kilogram
RoHS conform
xEffect – FAZ6
MCB
None
Yes
1
1
C
10 A
AC
230 V
440 V
4 kV
50 Hz
60 Hz
6 kA
6 kA
10 kA
10 kA
III
2
1
70.5 mm
IP20
1 mm²
25 mm²
1 mm²
25 mm²
10 A
1.5 W
-25 °C
75 °C
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Meets the product standard’s requirements.
Does not apply, since the entire switchgear needs to be evaluated.
Does not apply, since the entire switchgear needs to be evaluated.
Meets the product standard’s requirements.
Does not apply, since the entire switchgear needs to be evaluated.
Meets the product standard’s requirements.
Does not apply, since the entire switchgear needs to be evaluated.
Does not apply, since the entire switchgear needs to be evaluated.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
Is the panel builder’s responsibility.
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
3
Additional equipment possible
Circuit breakers and fuses (EG000020) / Miniature circuit breaker (MCB) (EC000042)
Electric engineering, automation, process control engineering / Electrical installation, device / Miniature circuit breaker system (MCB) / Miniature circuit breaker (MCB) ([email protected] [AAB905014])
Built-in depth
70.5 mm
Release characteristic
C
Number of poles (total)
1
Number of protected poles
1
Rated current
10 A
Rated voltage
230 V
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6 kA
Voltage type
AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10 kA
Frequency
50 – 60 Hz
Current limiting class
3
Flush-mounted installation
No
Concurrently switching neutral conductor
No
Over voltage category
3
Pollution degree
2
Additional equipment possible
Yes
Width in number of modular spacings
1
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 – 75 °C
Connectable conductor cross section multi-wired
1 – 25 mm²
Connectable conductor cross section solid-core
1 – 25 mm²
Explosion-proof
No
Electric engineering, automation, process control engineering / Electrical installation, device / Miniature circuit breaker system (MCB) / Miniature circuit breaker (MCB) ([email protected] [AAB905014])
70.5 mm
C
Number of poles (total)
1
1
1
10 A
230 V
440 V
4 kV
6 kA
AC
6 kA
10 kA
10 kA
50 – 60 Hz
3
No
No
3
2
Yes
1
IP20
-25 – 75 °C
1 – 25 mm²
1 – 25 mm²
No
