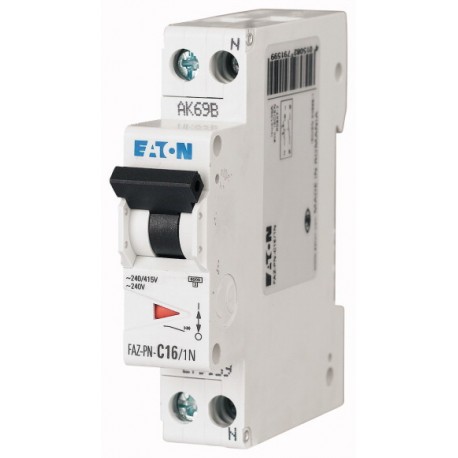

Miniature circuit breaker (MCB), FAZ-PN, 1-pole+N, tripping characteristic: B, rated current In: 10 A, Switchgear for industrial and advanced commercial applications
General specifications
Product name
Eaton Moeller series xEffect – FAZ-PN MCB
Part no.
FAZ-PN-B10/1N
EAN
4015082791476
Product Length/Depth
80 millimetre
Product height
75.5 millimetre
Product width
36 millimetre
Product weight
0.112 kilogram
Compliances
RoHS conform
Certifications
IEC/EN 60898
EN45545-2
IEC 61373
EN45545-2
IEC 61373
Product Tradename
xEffect – FAZ-PN
Product Type
MCB
Product Sub Type
None
Delivery program
Application
Switchgear for industrial and advanced commercial applications
xEffect – Switchgear for industrial and advanced commercial applications
xEffect – Switchgear for industrial and advanced commercial applications
Number of poles
Single-pole + N
Number of poles (total)
2
Number of poles (protected)
1
Tripping characteristic
B
Release characteristic
B
Amperage Rating
10 A
Type
FAZ-PN
Miniature circuit breaker
Miniature circuit breaker
Technical Data – Electrical
Voltage type
AC
Voltage rating
240 V AC / 415 V AC
Voltage rating at DC
60 V DC (per pole)
Rated operational voltage (Ue) – max
230 V
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV
Frequency rating – min
50 Hz
Frequency rating – max
60 Hz
Rated switching capacity (IEC/EN 60947-2)
10 kA
Rated short-circuit breaking capacity (EN 60898) at 230 V
6 kA
Rated short-circuit breaking capacity (EN 60898) at 400 V
6 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 230 V
10 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 400 V
10 kA
Admissible back-up fuse – max
100 A gL/gG
Selectivity class
3
Lifespan, electrical
4000 operations
Overvoltage category
III
Pollution degree
2
Direction of incoming supply
As required
Technical Data – Mechanical
Frame
45 mm
Enclosure width
80 mm
Width in number of modular spacings
2
Built-in depth
70.5 mm
Mounting width
17.5 mm
Mounting width per pole
17.5 mm
Mounting Method
Top-hat rail IEC/EN 60715
Degree of protection
IP40 (when fitted)
IP20
IP20
Terminals (top and bottom)
Twin-purpose terminals
Connectable conductor cross section (solid-core) – min
1 mm²
Connectable conductor cross section (solid-core) – max
25 mm²
Connectable conductor cross section (multi-wired) – min
1 mm²
Connectable conductor cross section (multi-wired) – max
25 mm²
Terminal capacity (control cable)
16 mm² (1x)
Terminal protection
Finger and hand touch safe, DGUV VS3, EN 50274
Design verification as per IEC/EN 61439 – technical data
Ambient operating temperature – min
-25 °C
Ambient operating temperature – max
75 °C
Additional information
Current limiting class
3
Features
Additional equipment possible
Concurrently switching N-neutral
Concurrently switching N-neutral
Product name
Eaton Moeller series xEffect – FAZ-PN MCB
Eaton Moeller series xEffect – FAZ-PN MCB
FAZ-PN-B10/1N
4015082791476
Product Length/Depth
80 millimetre
80 millimetre
75.5 millimetre
36 millimetre
0.112 kilogram
RoHS conform
IEC/EN 60898
EN45545-2
IEC 61373
EN45545-2
IEC 61373
xEffect – FAZ-PN
MCB
None
Switchgear for industrial and advanced commercial applications
xEffect – Switchgear for industrial and advanced commercial applications
xEffect – Switchgear for industrial and advanced commercial applications
Single-pole + N
2
1
B
B
10 A
FAZ-PN
Miniature circuit breaker
Miniature circuit breaker
AC
240 V AC / 415 V AC
60 V DC (per pole)
230 V
440 V
4 kV
50 Hz
60 Hz
10 kA
6 kA
6 kA
10 kA
10 kA
100 A gL/gG
3
4000 operations
III
2
As required
45 mm
80 mm
2
70.5 mm
17.5 mm
17.5 mm
Top-hat rail IEC/EN 60715
IP40 (when fitted)
IP20
IP20
Twin-purpose terminals
1 mm²
25 mm²
1 mm²
25 mm²
16 mm² (1x)
Finger and hand touch safe, DGUV VS3, EN 50274
-25 °C
75 °C
3
Additional equipment possible
Concurrently switching N-neutral
Concurrently switching N-neutral
Circuit breakers and fuses (EG000020) / Miniature circuit breaker (MCB) (EC000042)
Electric engineering, automation, process control engineering / Electrical installation, device / Miniature circuit breaker system (MCB) / Miniature circuit breaker (MCB) ([email protected] [AAB905014])
Built-in depth
70.5 mm
Release characteristic
B
Number of poles (total)
2
Number of protected poles
1
Rated current
10 A
Rated voltage
230 V
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6 kA
Voltage type
AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10 kA
Frequency
50 – 60 Hz
Current limiting class
3
Flush-mounted installation
No
Concurrently switching neutral conductor
Yes
Over voltage category
3
Pollution degree
2
Additional equipment possible
Yes
Width in number of modular spacings
2
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 – 75 °C
Connectable conductor cross section multi-wired
1 – 25 mm²
Connectable conductor cross section solid-core
1 – 25 mm²
Explosion-proof
No
Electric engineering, automation, process control engineering / Electrical installation, device / Miniature circuit breaker system (MCB) / Miniature circuit breaker (MCB) ([email protected] [AAB905014])
70.5 mm
B
Number of poles (total)
2
2
1
10 A
230 V
440 V
4 kV
6 kA
AC
6 kA
10 kA
10 kA
50 – 60 Hz
3
No
Yes
3
2
Yes
2
IP20
-25 – 75 °C
1 – 25 mm²
1 – 25 mm²
No
